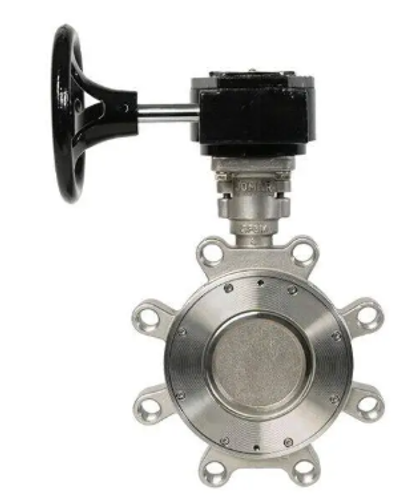

4" Jomar Valve HPBFV-600-SS-300-GO, Lug Style, Stainless Steel Body, Dual Offset Stainless Steel Disc, RPTFE Seat & Gear Operator, Class 300 High Performance Butterfly Valve
Brand : Jomar Valve
MSRP: $2,525.95
Starting At:
$1,804.99
(You save
$720.96
)
- Size Dropdown:
- True
4" Jomar Valve HPBFV-600-SS-300-GO High Performance Butterfly Valve Technical Specs
Features
- Corrosion-resistant one-piece body
- RPTFE Seat
- Bubble-tight shut-off design
- Durable one-piece stem
- A564 Gr.630 / 17-4 PH materials
- ISO 5211 Mounting Pad
- 2" - 12" = Square Design
- Dual offset disc design
- Internal stop to prevent disc over-travel
- Tight gland packing flange to prevent uneven load distribution
- Bidirectional for dead-end service
- 29 in-Hg vacuum rating
Certifications/Approvals
- Basic Design,API 609; MSS-SP-68; BS 5155; ISO 5752
- Pressure / Temperature Rating,ANSI B16.34
- Shell / Seat Test,API 598; MSS-SP-61
- Working Pressure,Class 300 (740 PSIG)
- Metal to Metal Seat Leakage,Class IV per ASME/FCI 70-2
Technical Specifications
Item
High Performance Butterfly Valve
Size
4"
Body Material
A351 CF8M Stainless Steel
Seat Material
RPTFE
Body Type
Lug Style
Handle Type
Gear Operator
Disc Material
A351 CF8M Stainless Steel
Pressure Class
Class 300
Working Pressure
740 psi
Temp. Range
-50°F to 750°F
