Save 40%
2" NOSHOK 100 Series Industrial Type Bimetal Thermometers, 20-110-090-50/500-F/C, Bimetal, 50/500 ËšF, 1/4" NPT Back Connection, 9" Stem Length, Dual Temperature Scale
SKU:
20-110-090-50/500-F/C
Made in the United States
$48.99
Price on request
Was: $82.98
You Save $33.99
Available
Connection Size1/4 in
Connection TypeNPT
Temperature Range [Min]50 ºF
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Bimetal Thermometer |
|---|---|
| Series | 100 |
| Full Scale Accuracy (±) | 1.0 % |
| Accuracy Grade | A |
| Lens | Instrument Glass |
| Dial Size | 2 in |
| Case Type | Back Connection |
| Pointer | Aluminum, Black Finished |
| Dial | Anodized Aluminum with large black numbers and graduations |
| Hermetic Seal | Per American Society of Mechanical Engineers (ASME) B40.3 dustproof and leakproof |
| Bimetal Coil | Silicone coated helix coil on ranges below 500 ºF for vibration dampening, maximum heat transfer and response time |
| Warranty | 1 yr |
| Stock | Yes |
| Brand | NOSHOK |
| Manufacturer Part # | 20-110-090-50/500-F/C |
| Size | 2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Case and Bezel Material | 304 Stainless Steel |
|---|---|
| Wetted Parts Material | 304 Stainless Steel |
| Optional Wetted Parts Material | 316 Stainless Steel |
| Optional Case and Bezel Material | 316 Stainless Steel |
| Stem Lengths | 9 in |
| Stem Diameter | 0.250 in (6.35 mm) |
Performance
| Temperature Range [Min] | 50 ºF |
|---|---|
| Temperature Range [Max] | 500 ºF |
| Temperature Scale | Dual |
| Limits Over Temperature at 100 Percentage | Up to 250 ºF |
| Limits Over Temperature at 50 Percentage | 250 to 500 ºF |
| Limits Over Temperature at Continuous Use Up to 800 ºF | 550 to 1,000 ºF |
| Limits Over Temperature at Intermittent Use Over 800 ºF | 550 to 1,000 ºF |
Connections
| Connection Size | 1/4 in |
|---|---|
| Connection Type | NPT |
Overview

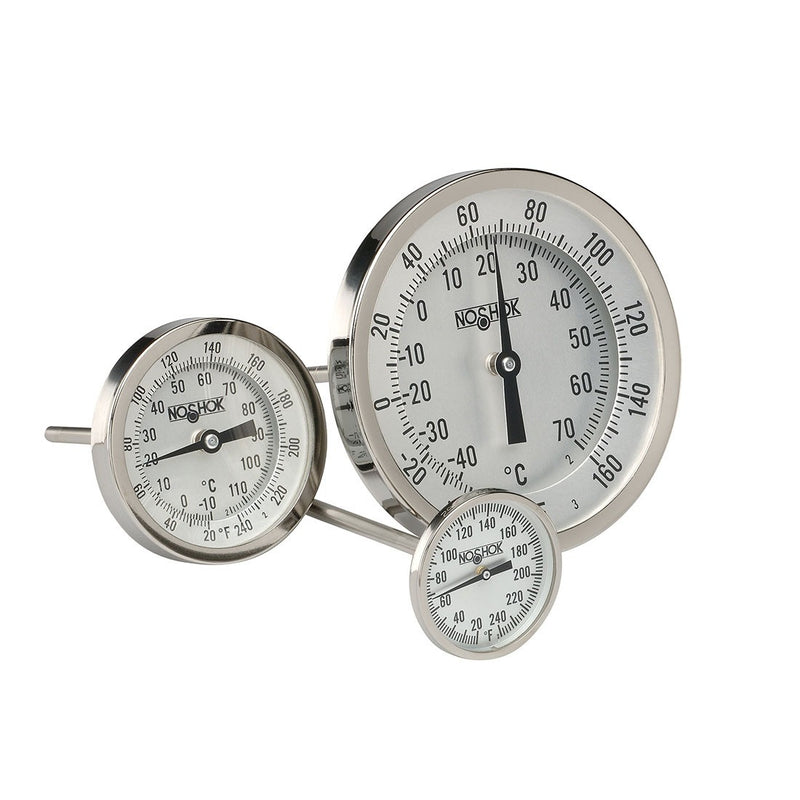

100 Series - Industrial Type Bimetal Thermometers
- Heavy-duty, industrial thermometer featuring a weather-resistant, tamper-proof case
- ± 1-3/4", 2", 3" and 5" sizes - center back connection only
- Highly sensitive bimetallic helix coil is heat-treated for stress relief, and silicone-coated to minimize pointer vibration and maximize heat transfer and response time
- 360º groove around stem is a visual reference to show minimum immersion point
- Made in the U.S.A.
