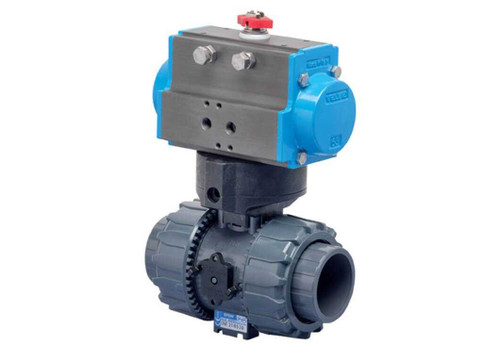

4" Bonomi 8P2SRCPVC - Ball Valve, 2-way, CPVC, Full Port, with Spring Return Pneumatic Actuator

Name: 4" Bonomi 8P2SRCPVC - Ball Valve, 2-way, CPVC, Full Port, with Spring Return Pneumatic Actuator
Brand: Bonomi Valves
SKU: 8P2SRCPVC-4

SKU: 8P2SRCPVC-4

$2,728.99 Was: $3,215.00 You Save $486.01

Available to Order

Available Sizes

1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Size4"

Pressure Rating232 PSI at 73°F

Body MaterialCPVC

End ConnectionNPT and Socket Ends Included

PortFull Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Pneumatic Actuated Ball Valve
Design Type	Dual Union Nut Locks
Air Supply Needed	80 PSI
Actuation Type	Pneumatic Spring Return
Brand	Bonomi Valves
Manufacturer Part #	8P2SRCPVC-4
Size	4"

Materials & Construction

Body Material	CPVC
Ball Material	CPVC
Seat Material	P.T.F.E.
Packing Material	EPDM

Performance

Pressure Rating	232 PSI at 73°F
Temp. Rating	-4°F to +250°F

Connections

Port	Full Port
End Connection	NPT and Socket Ends Included

Standards & Certifications

See Specification Sheet
