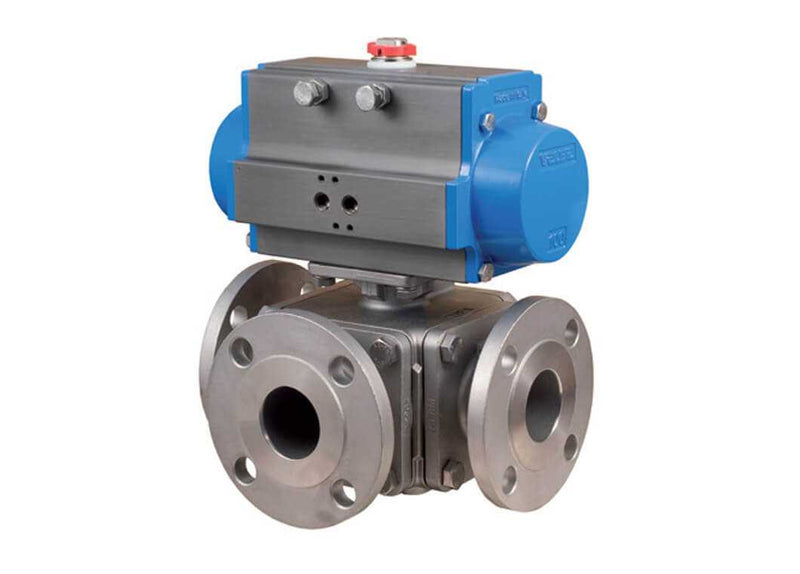

Bonomi DA97L150 Series - 3-Way, Stainless Steel, L-Port, Ball Valve with Double Acting Actuator
SKU:
BNM-DA97L150
Starting at
$683.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Pressure Rating1/4" to 1" - 1000 psi, 1-1/4" to 2" - 800 psi, 2-1/2" to 3" - 600 psi, 4" to 6" - 300 psi (Refer to P/T Chart)
Body Material316 Stainless Steel
End Connection150# Flanged
PortingL-Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 3-Way Pneumatically Actuated Ball Valve |
|---|---|
| Design Type | N/A |
| Air Supply Needed | 80 PSI |
| Actuation Type | Double Acting (Fail in Place) |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-DA97L150 |
Materials & Construction
| Body Material | 316 Stainless Steel |
|---|---|
| Ball Material | 316 Stainless Steel |
| Seat Material | R.P.T.F.E. |
| Packing Material | P.T.F.E. |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | 1/4" to 1" - 1000 psi, 1-1/4" to 2" - 800 psi, 2-1/2" to 3" - 600 psi, 4" to 6" - 300 psi (Refer to P/T Chart) |
|---|---|
| Valve Temp. Rating | -20°F to 450°F (Refer to P/T Chart) |
Connections
| Porting | L-Port |
|---|---|
| Port | Full Port |
| End Connection | 150# Flanged |
Standards & Certifications
See Specification Sheet
