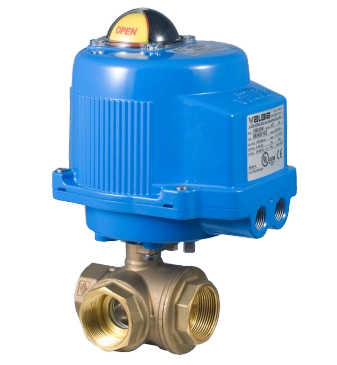

Bonomi M8E065LF-00* Series Ball Valve, 355N LF Direct Mount, 3-Way, Lead-Free Brass, NPT, T-Port with Metal Electric Actuator

Name: Bonomi M8E065LF-00* Series Ball Valve, 355N LF Direct Mount, 3-Way, Lead-Free Brass, NPT, T-Port with Metal Electric Actuator
Brand: Bonomi Valves
SKU: M8E065LF-00* Series

SKU: M8E065LF-00* Series

Starting at $556.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3"

Size Range1/4" to 3"

Pressure Rating400 psi WOG

Body MaterialLead-Free Brass

End ConnectionNPT Threaded

PortingT-Port

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	3-Way Electrically Actuated Ball Valve
Size Range	1/4" to 3"
Available Actuator Voltage	12V AC/DC
Duty Cycle	75% Duty Cycle
Brand	Bonomi Valves
Manufacturer Part #	M8E065LF-00* Series

Materials & Construction

Body Material	Lead-Free Brass
Ball Material	Lead-Free Brass
Seat Material	PTFE
Stem Material	Lead-Free Brass
Stem Design	Blowout Proof Stem

Performance

Pressure Rating	400 psi WOG
Temp. Rating	-4>
NEMA Rating	NEMA 4

Connections

Porting	T-Port
End Connection	NPT Threaded

Download Specification Sheet (PDF)
