NOSHOK 200 Series Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches, 200H-3-45-1000/6000-112, NBR Diaphragm, 1 SPDT, (NO/NC), 7/16-20 SAE Male, 1,000 to 6,000 psig, Weatherpack Shroud, 3-Pin Female
SKU:
200H-3-45-1000/6000-112
Made in the United States
$92.99
Price on request
Was: $103.13
You Save $10.14
Available
Process Connection Size7/16-20
Static Proof Pressure9,000 psi, 620 bar
Electrical ConnectionWeatherpack Shroud, 3-Pin Female, Attached to Flying Leads
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Mechanical Pressure Switch |
|---|---|
| Series | 200 |
| Switching Function | Single Pole Double Throw (SPDT) |
| Switch Adjustable Range | 1,000 to 6,000 psig |
| Switch Type | Snap Action |
| Switch Point | Field Adjustable and/or Factory Set |
| Hysteresis | 150 to 600 psi |
| Service Life | < 1,000,000 Load Cycles |
| Measuring Element | Zinc-Nickel, NBR Diaphragm |
| Warranty | 1 yr |
| Brand | NOSHOK |
| Manufacturer Part # | 200H-3-45-1000/6000-112 |
| Size | 7/16" |
| Country of Origin | Made in the United States |
Materials & Construction
| Housing Material | Zinc-Nickel Plated Steel |
|---|
Performance
| Environmental Rating | Ingress Protection (IP69) |
|---|---|
| Static Proof Pressure | 9,000 psi, 620 bar |
| Dynamic Proof Pressure | 7,500 psi, 517 bar |
| Contact Rating | 5A @ 12/24 Vdc |
Connections
| Electrical Connection | Weatherpack Shroud, 3-Pin Female, Attached to Flying Leads |
|---|---|
| Process Connection | Society of Automotive Engineers (SAE) Male, Non-Adjustable |
| Process Connection Size | 7/16-20 |
Dimensions & Weight
| Weight | 0.2 lb |
|---|
Overview

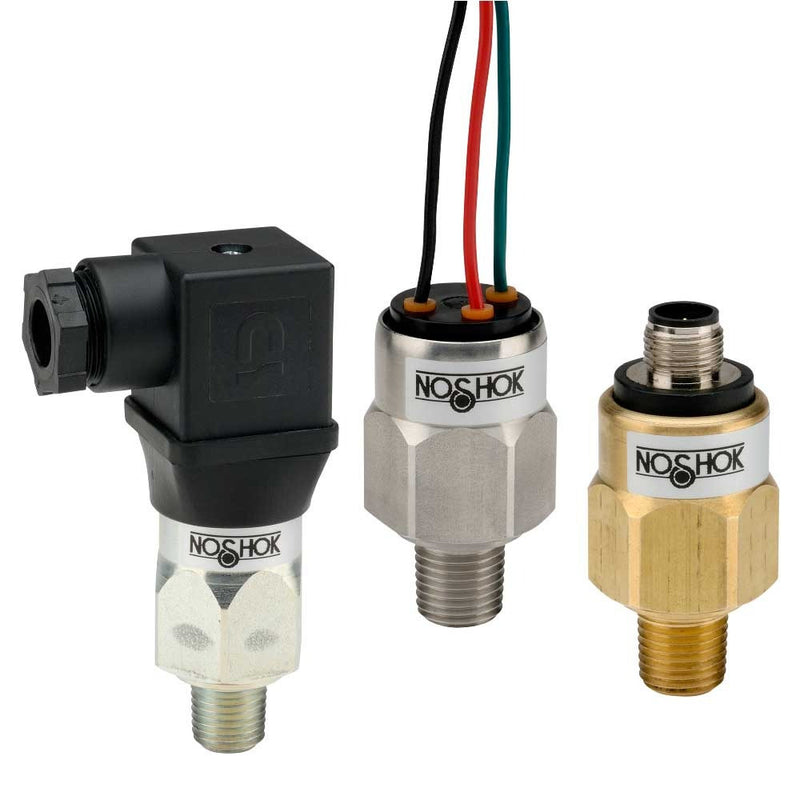

200 Series - Mechanical Compact Single Pole Double Throw (SPDT) Pressure Switches
- Switch adjustment ranges from vacuum through 6,00 psig depending on model
- 200V & 200L: Standard Brass with NBR diaphragm wetted parts, 200H: Standard Zinc-nickel with NBR diaphragm wetted parts
- SPST or SPDT snap-action switch with solid Silver contacts
- RoHS compliant
