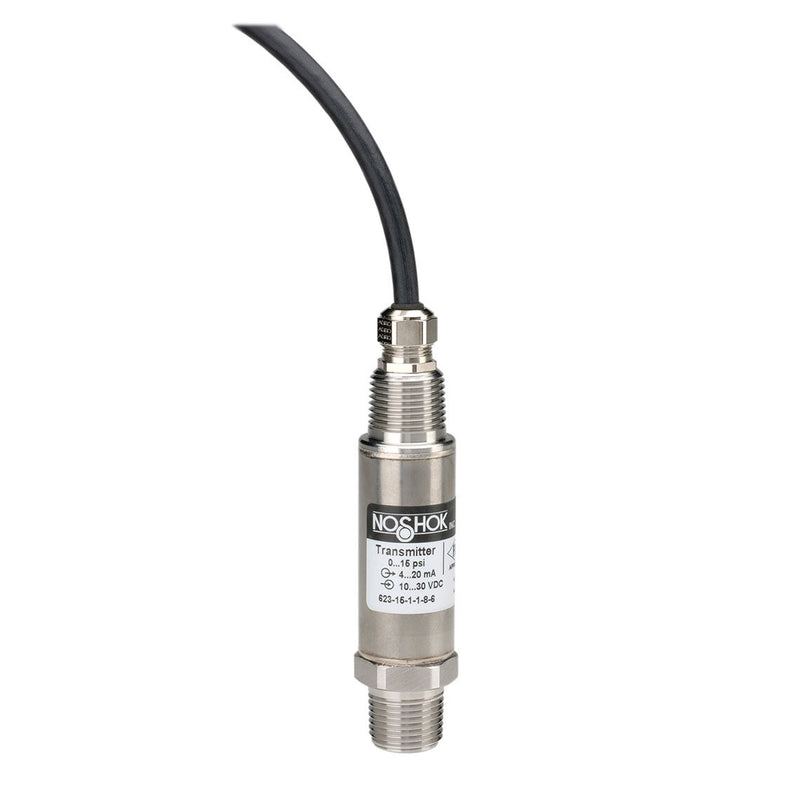

NOSHOK 623 Series Non-Incendive Pressure Transmitter, 0 to 15,000psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/4" - 1/2" NPT Male Pressure Transmitter with 1/2" NPT Conduit
SKU:
NOSHOK 623 Series Pressure Transmitter
Made in the United States
Starting at
$103.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Connection Size1/4 in
Pressure Range0 to 100 psig
Connection TypeMale National Pipe Thread (MNPT)
Storage Temperature [Min]-300 ºC-22 ºF
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Pressure Transmitter |
|---|---|
| Full Scale Best Fit Straight Line (BFSL) Accuracy (±) | 0.25 % |
| Output Signal | 4 mA to 20 mA, 2-wire |
| Series | Stainless Steel Threaded Connection |
| Stability | ≤ ±0.2% full scale for 1 year, non-accumulating |
| Response Time | ≤1 ms |
| Service Life | > 100,000,000 Load Cycles |
| Power Requirement | 10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire) |
| Measuring Element | 623 Series is 316 stainless steel for ranges up through 0 psi to 300 psi, 316 stainless steel and Elgiloy for ranges 0 psig to 500 psig and higher |
| Electrical Protection | Reverse polarity, over-voltage and short circuit protected |
| Shock According to International Electrotechnical Commission (IEC) 60068-2-27 | 1,000 g |
| Vibration According to International Electrotechnical Commission (IEC) 60068-2-6 | 20 g |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NOSHOK 623 Series Pressure Transmitter |
| Country of Origin | Made in the United States |
Materials & Construction
| Housing Material | 316 Stainless Steel |
|---|
Performance
| Storage Temperature [Min] | -300 ºC-22 ºF |
|---|---|
| Storage Temperature [Max] | 100 ºC212 ºF |
| Pressure Range | 0 to 100 psig |
| Environmental Rating | Ingress Protection (IP65) to Ingress Protection (IP67) dependent upon electrical connection |
| Absolute Pressure Range | 0 to 100 psia |
| Compensated Temperature Range | 32 to 176 ºF0 to 80 ºC |
| Note for Compensated Temperature Range | Zero effect is ±0.011% full scale/ºF within compensated range |
| Media Temperature Range | -40 to 212 ºF-40 to 100 ºC |
| Ambient Temperature Range | -22 to 176 ºF-30 to 80 ºC |
| Electromagnetic Rating | European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection |
Connections
| Connection Type | Male National Pipe Thread (MNPT) |
|---|---|
| Connection Size | 1/4 in |
| Connection Size (Search Only) | 1/4 in |
| Electrical Connection | 1/2 in. NPT male conduit with 6 ft integral cable |
| Connection Material | 316 Stainless Steel |
Dimensions & Weight
| Weight | 12 oz |
|---|
Overview
623 Series - Non-Incendive Pressure Transmitters
- Current and voltage outputs available
- 316 stainless Steel and Elgiloy wetted parts
- Factory Mutual and Canadian Standards Association approved
- CE compliant to suppress RFI, EMI and ESD
- NACE MR0175/ISO 15156 compliant
- NSI/ISA-12.27.01 approved single seal
