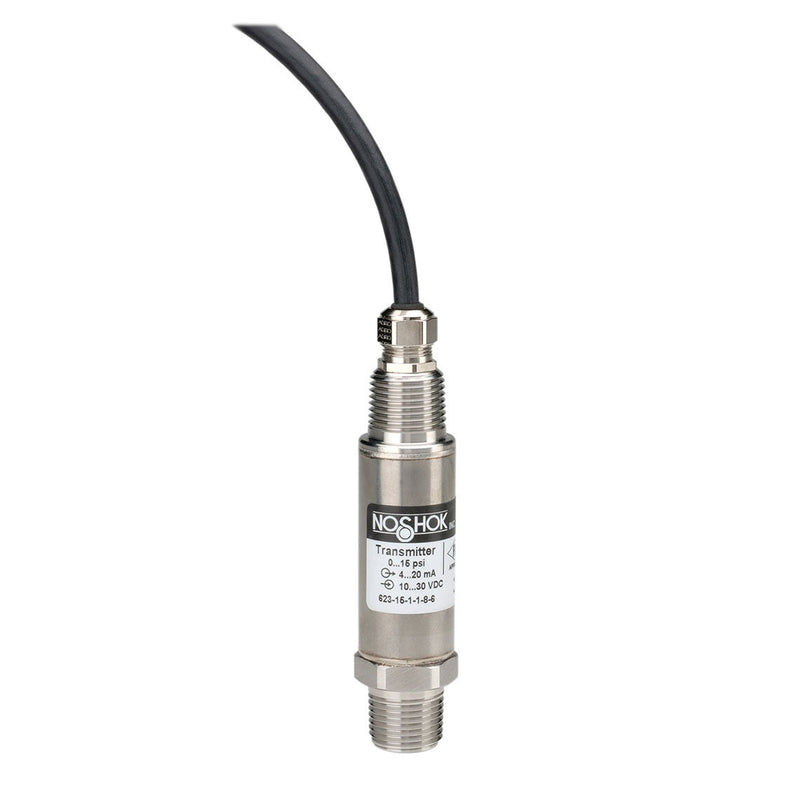

NOSHOK 623 Series Non-Incendive Pressure Transmitter 623-2-1-1-2-6, 0 to 2 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2

Save 9%

NOSHOK Authorized Distributor

NOSHOK 623 Series Non-Incendive Pressure Transmitter 623-2-1-1-2-6, 0 to 2 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" NPT Male Pressure Transmitter with 1/2" NPT Conduit (6 ft Cable Attached)

Name: NOSHOK 623 Series Non-Incendive Pressure Transmitter 623-2-1-1-2-6, 0 to 2 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" NPT Male Pressure Transmitter with 1/2" NPT Conduit (6 ft Cable Attached)
Brand: NOSHOK
SKU: 623-2-1-1-2-6

SKU: 623-2-1-1-2-6

Made in the United States

$518.99 Was: $576.51 You Save $57.52

Available

Available Sizes

1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/2"

Connection Size1/4 in

Pressure Range0 to 2 psig

Connection TypeMale National Pipe Thread (MNPT)

Storage Temperature [Min]-300 ºC-22 ºF

Typically ships in 3–5 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Pressure Transmitter
Full Scale Best Fit Straight Line (BFSL) Accuracy (±)	0.25 %
Output Signal	4 mA to 20 mA, 2-wire
Series	Stainless Steel Threaded Connection
Stability	≤ ±0.2% full scale for 1 year, non-accumulating
Response Time	≤1 ms
Service Life	> 100,000,000 Load Cycles
Power Requirement	10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire)
Measuring Element	623 Series is 316 stainless steel for ranges up through 0 psi to 300 psi, 316 stainless steel and Elgiloy for ranges 0 psig to 500 psig and higher
Electrical Protection	Reverse polarity, over-voltage and short circuit protected
Shock According to International Electrotechnical Commission (IEC) 60068-2-27	1,000 g
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6	20 g
Warranty	3 yr
Brand	NOSHOK
Manufacturer Part #	623-2-1-1-2-6
Size	1/2"
Country of Origin	Made in the United States

Materials & Construction

Housing Material	316 Stainless Steel

Performance

Storage Temperature [Min]	-300 ºC-22 ºF
Storage Temperature [Max]	100 ºC212 ºF
Pressure Range	0 to 2 psig
Environmental Rating	Ingress Protection (IP65) to Ingress Protection (IP67) dependent upon electrical connection
Absolute Pressure Range	0 to 100 psia
Compensated Temperature Range	32 to 176 ºF0 to 80 ºC
Note for Compensated Temperature Range	Zero effect is ±0.011% full scale/ºF within compensated range
Media Temperature Range	-40 to 212 ºF-40 to 100 ºC
Ambient Temperature Range	-22 to 176 ºF-30 to 80 ºC
Electromagnetic Rating	European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection

Connections

Connection Type	Male National Pipe Thread (MNPT)
Connection Size	1/4 in
Connection Size (Search Only)	1/4 in
Electrical Connection	1/2 in. NPT male conduit with 6 ft integral cable
Connection Material	316 Stainless Steel

Dimensions & Weight

Weight	12 oz
