Top 10 Swing Check Valves by Model & Manufacturer

Looking for reliable swing check valves? Discover the top 10 models from leading manufacturers like Chicago Valve, AVCO, Red-White, and Apollo. This comprehensive guide covers specifications, applications, and key features to help you select the perfect swing check valve for your system.

Swing check valves are essential for preventing backflow in piping systems across industries—from HVAC and cooling towers to wastewater treatment and oil refineries. These self-operating valves provide reliable, maintenance-free service when properly matched to your system's flow requirements.

At ValveMan, we've been selling swing check valves for over 50 years. Our extensive experience helps us identify the best models for any application. Here are the top 10 swing check valves available through ValveMan, covering various manufacturers and specifications.

Top 10 Swing Check Valve Models

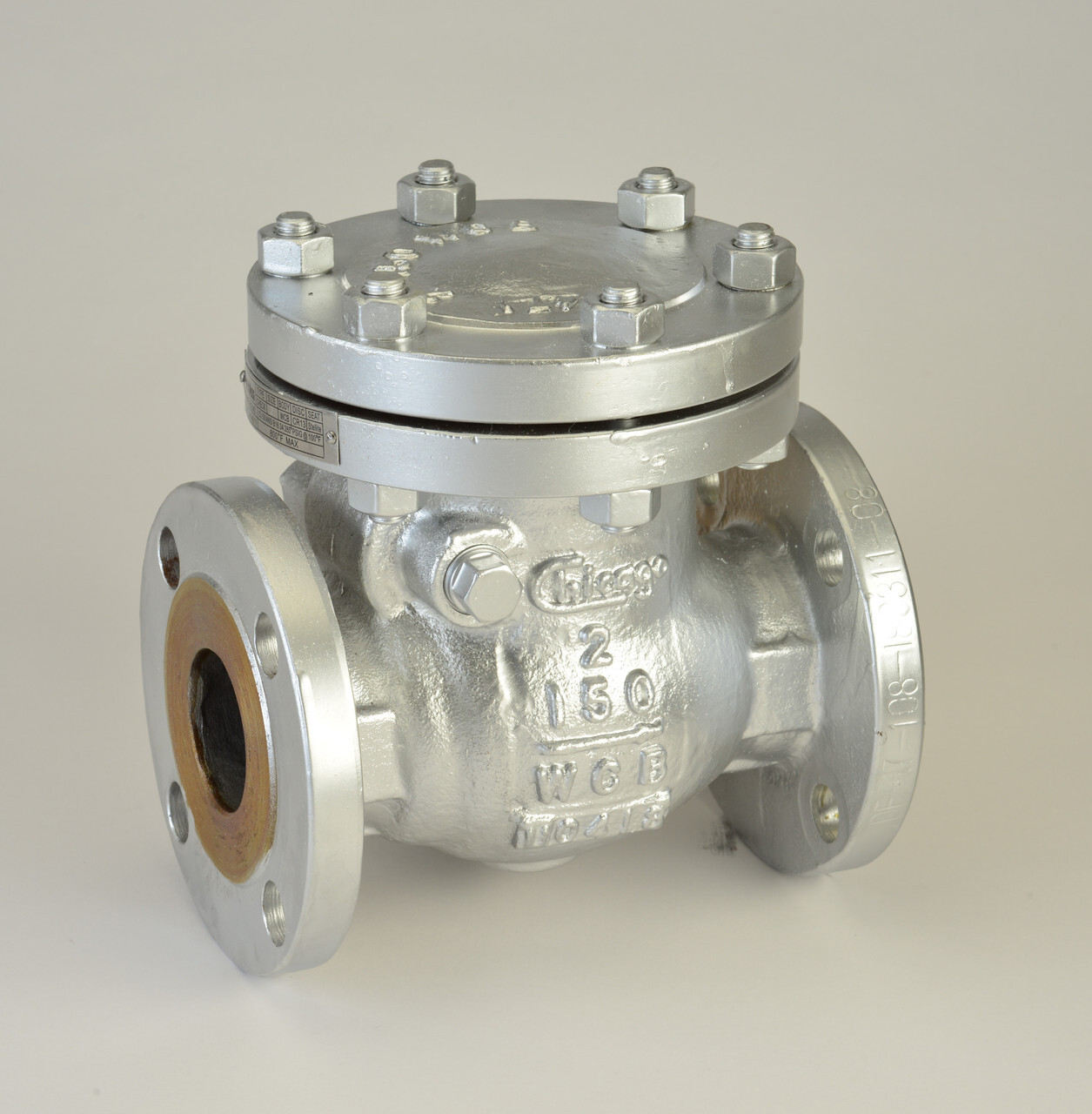

1. Chicago Valve Series 414 - Cast Steel

Built for heavy-duty industrial applications, the Series 414 features cast steel WCB construction meeting API 600 standards. Available in 150# and 300# class ratings (up to 1480 psi), it handles temperatures up to 1000°F. Ideal for oil and gas, chemical processing, and power generation in sizes 2" through 6".

See Chicago Swing Check Valves

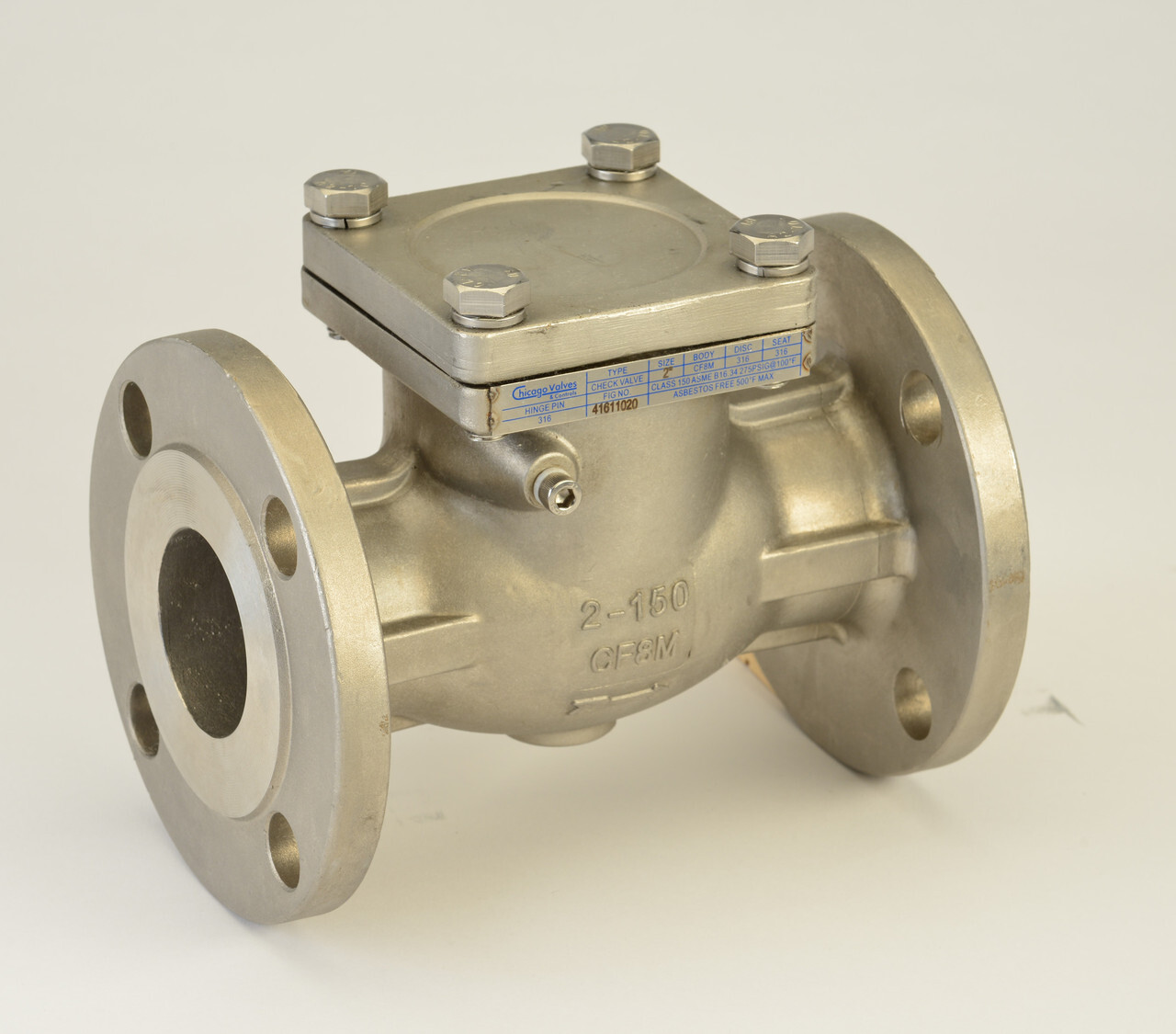

2. Chicago Valve Series 416 - 316 Stainless Steel

When corrosion resistance is critical, the Series 416 delivers with 316 stainless steel construction. Rated for 150# class (up to 720 psi) and temperatures to 1000°F, it excels in chemical processing, marine environments, and pharmaceutical applications. Available in sizes 1/2" through 8".

See Chicago Swing Check Valves

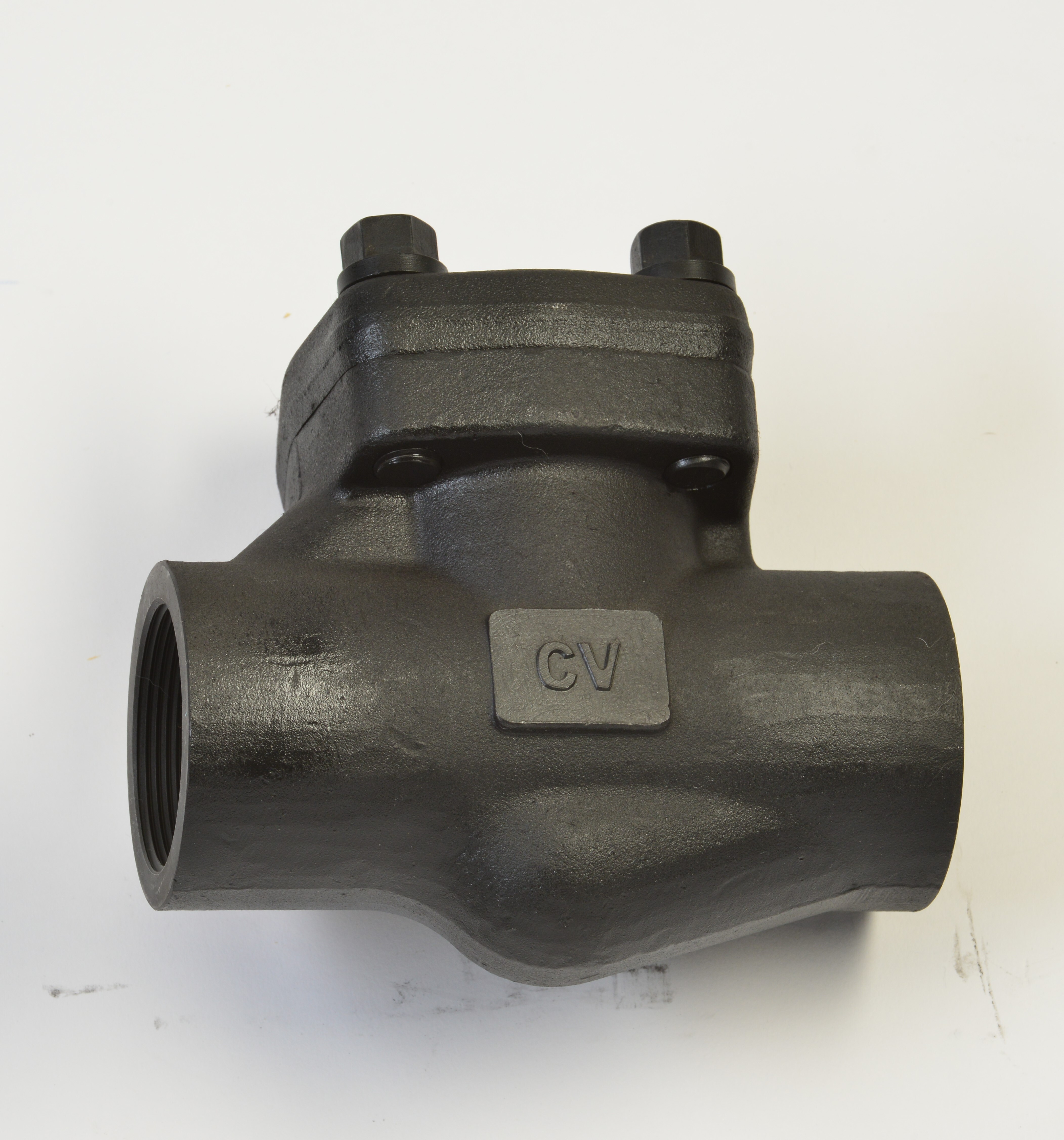

3. Chicago Valve Series 484 - Class 800 Forged Steel

Engineered for extreme pressure applications, the Series 484 offers Class 800 ratings (up to 1975 psi) in a compact forged steel design. Perfect for high-pressure steam, instrumentation tubing, and hydraulic systems where space is limited. Available in socket weld or threaded ends, sizes 1/4" through 2".

See Chicago Swing Check Valves

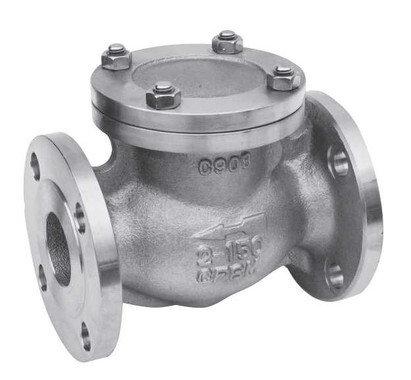

4. AVCO 3116 Series - 316 Stainless Steel with Metal Seat

The ultimate multi-service valve, the AVCO 3116 handles everything from hydraulic fluids to dry chlorine. Its bolted cap design with metal-to-metal seating provides superior durability in high-temperature applications. ANSI Class 150 flanged connections available in sizes 1/2" through 8".

View AVCO 3116 Specs & Order Options

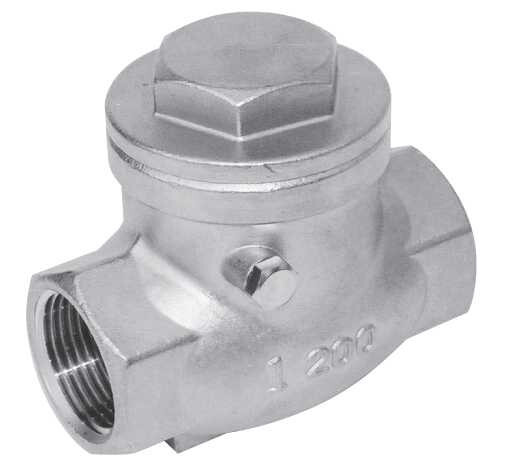

5. AVCO 3226 Series - 316 Stainless Steel Threaded

Bringing professional-grade performance to threaded connections, the AVCO 3226 features screwed cap design with integrated seats. Rated for 200 psi with NPT connections, it's perfect for maintenance and retrofit applications where flanged connections aren't practical. Sizes 1/2" through 2".

View AVCO 3226 Specs & Order Options

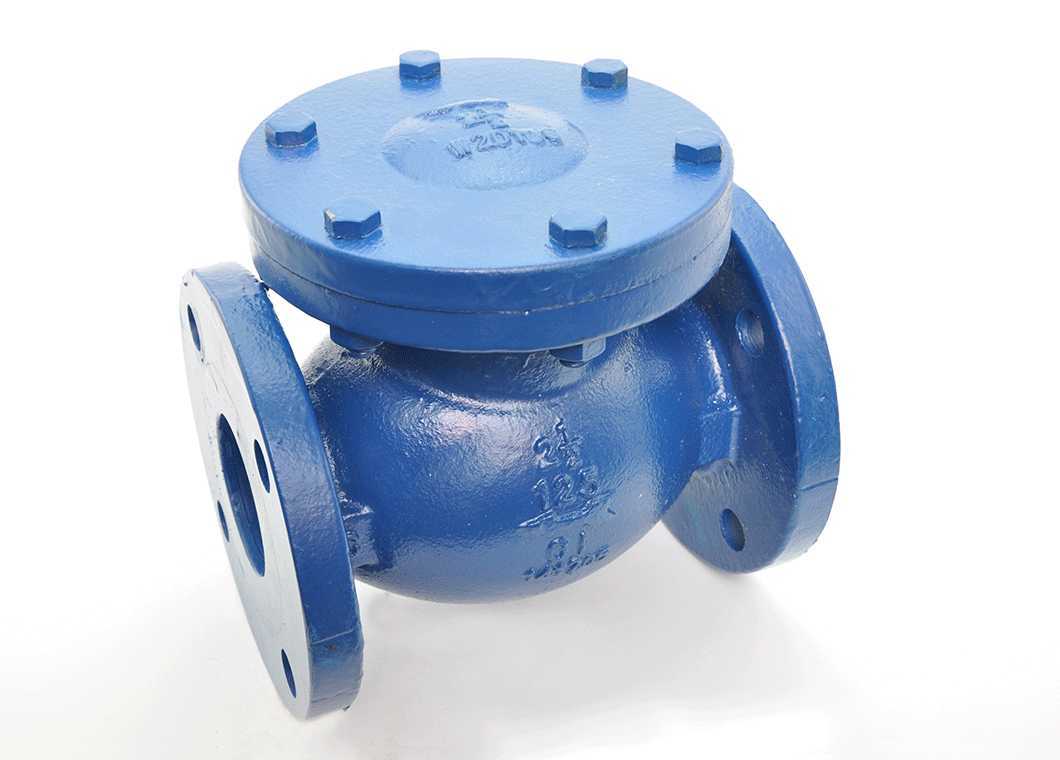

6. Red-White 435 Series - Iron Swing Check

A trusted name since 1971, Red-White's 435 Series offers reliable cast iron construction for water distribution and general industrial service. Backed by VIR's 40+ years of valve manufacturing expertise, this valve combines quality with affordability for medium oil and water service applications.

View Red-White 435 Series Valves

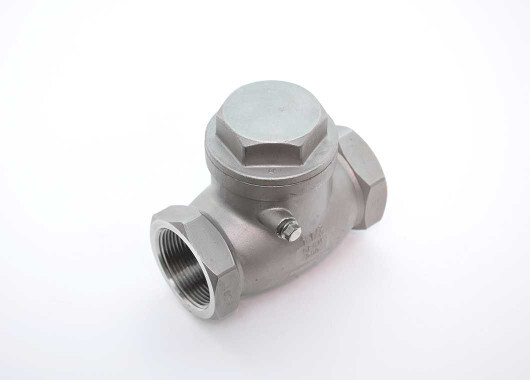

7. Red-White 884 Series - Stainless Steel Swing Check

Engineered for sanitary applications, the 884 Series features stainless steel construction meeting FDA and 3-A standards. Ideal for potable water systems, food processing, and pharmaceutical applications where cleanliness and corrosion resistance are essential. Professional-grade quality from American engineering and Italian manufacturing.

View Red-White 884 Series Valves

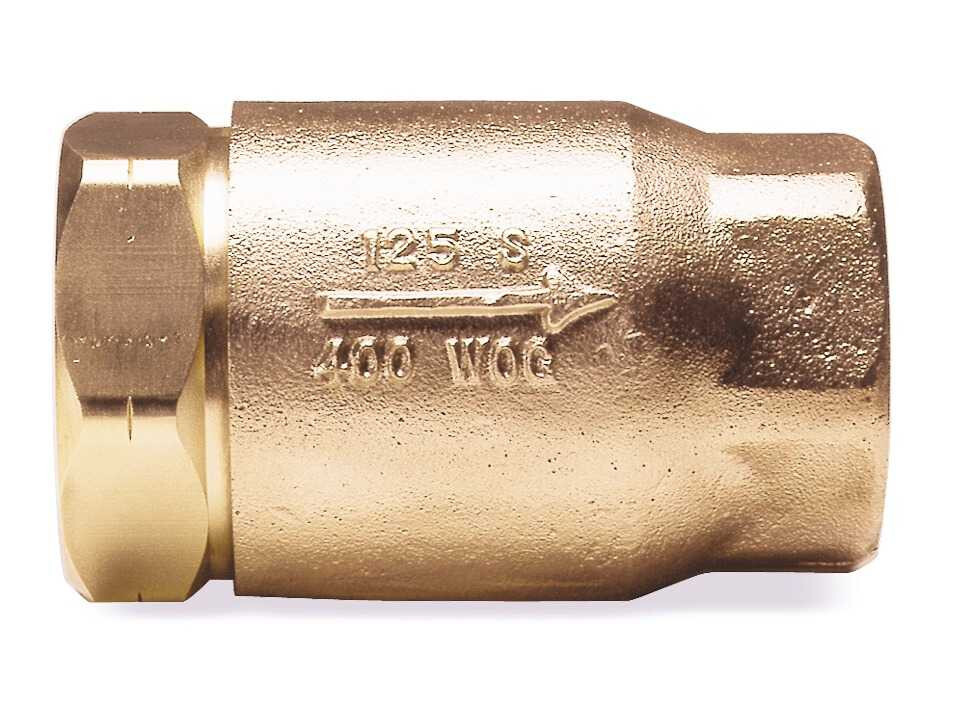

8. Apollo 61 Series - Bronze Check Valve

Made in the USA, Apollo's 61 Series brings quality to residential and light commercial applications. Bronze body with soft EPR/EPDM seat, 316 stainless steel spring, rated for 400 psi and temperatures to 250°F. NPT threaded connections provide easy installation in plumbing and HVAC systems.

View Apollo 61 Bronze Check Valves

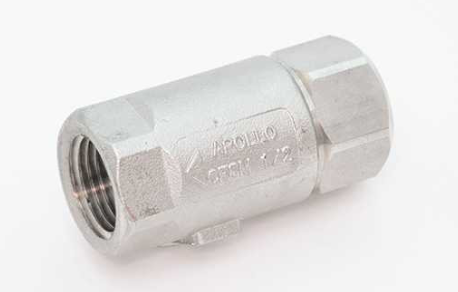

9. Apollo 62 Series - Stainless Steel Silent Check

When quiet operation matters, the Apollo 62 delivers. This ball-cone silent check valve minimizes water hammer and noise, making it perfect for hospitals, hotels, and office buildings. Ultra-low 1/2 psi cracking pressure, 400 psig rating, stainless steel construction. Made in the USA, sizes 1/4" through 2".

View Apollo 62 Silent Check Valves

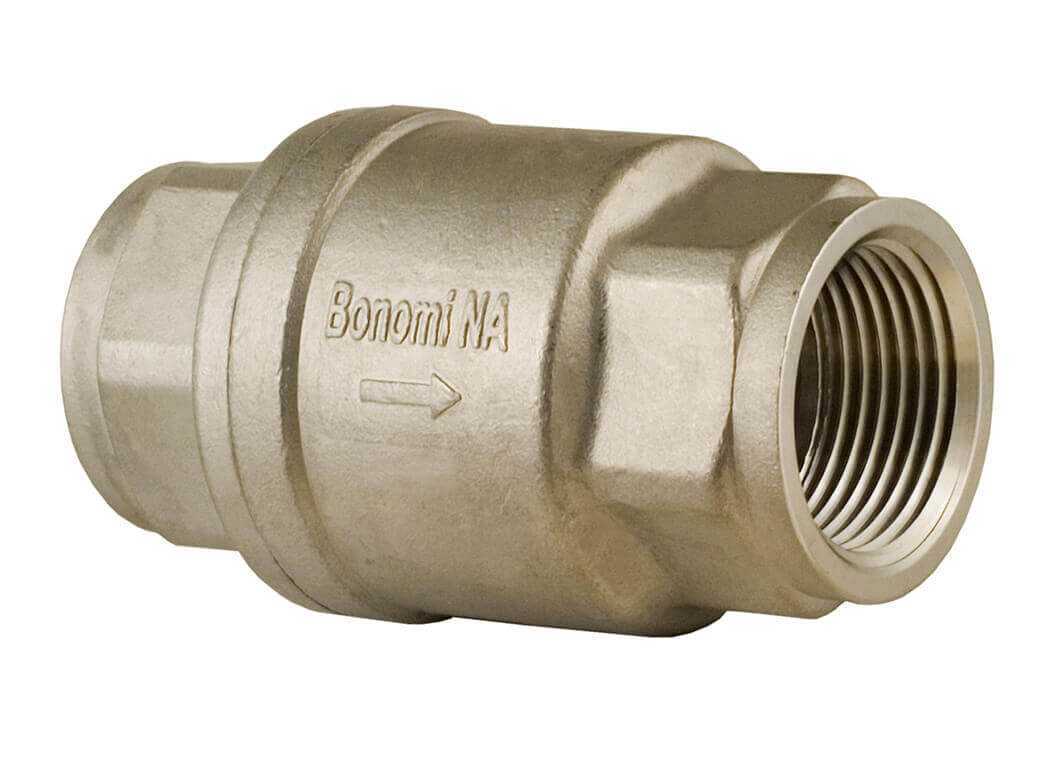

10. Bonomi S800 Series - Stainless Steel Inline Check

Italian engineering excellence meets versatile performance. The S800 features CF8M stainless steel construction with 800 WOG-125 WSP rating and wide temperature range (10°F to 450°F). PTFE seat with 316 SS spring, 1/2 psi cracking pressure, threaded connections. Excellent for oil and gas, hydraulics, and heating applications, sizes 1/4" through 2".

View Bonomi S800 Inline Check Valves

Quick Comparison Guide

Choosing the Right Swing Check Valve

When selecting a swing check valve, consider these key factors:

Flow Rate Matching: The most critical factor is matching the valve to your system's flow pressure, not just pipe size. Undersized valves cause disc flutter and backflow, while oversized valves may never fully open.

Material Selection: Choose cast/forged steel for high pressure and temperature, 316 stainless steel for corrosive media, cast iron for water distribution, or bronze for plumbing applications.

Installation Orientation: Horizontal installation is strongly recommended. Vertical installations increase cracking pressure and can cause water hammer.

Connection Type: Flanged connections work best for larger sizes and permanent installations. Threaded (NPT) connections are ideal for smaller sizes and retrofits. Socket weld is preferred for high-pressure, small-bore applications.

Why Choose ValveMan

With over 50 years of valve industry experience, ValveMan offers extensive inventory from leading manufacturers, expert technical support, competitive pricing, and fast shipping. Our valve specialists help you navigate pressure ratings, material compatibility, and application requirements to ensure you get the right valve the first time.

Need help selecting the right swing check valve? Contact ValveMan today for free technical consultation and custom valve sizing assistance. Visit https://valveman.com/.com or call us now—your perfect valve solution is just a click away.
