Bronze Valves

Bronze valves are specifically designed control mechanisms made out of bronze alloy, which allows fluid (such as gas, steam, or liquid) to pass through them or to be blocked entirely. They are a common type of valve due to their superior resistance to corrosion and long lifespan, making them a highly desirable component in various professional industries.

The use of bronze alloy in their manufacture renders these valves incredibly durable and perfect for handling pressure. Bronze itself is an alloy commonly composed of copper, tin, and often small amounts of other elements such as zinc and phosphorus. These constituent components give bronze valves exceptional thermal conductivity and resistance to wear and tear.

At ValveMan, we stock premium quality bronze valves from trusted manufacturers. Our substantial range includes ball valves, gate valves, check valves, globe valves, and more, all designed to deliver reliable performance in whatever application for which they are incorporated.

How Do Bronze Valves Work?

Bronze valves operate by controlling the flow of fluid within a pipeline system. They typically feature an internal obstructing device which can either restrict or permit flow entirely via the turn of a handle or wheel.

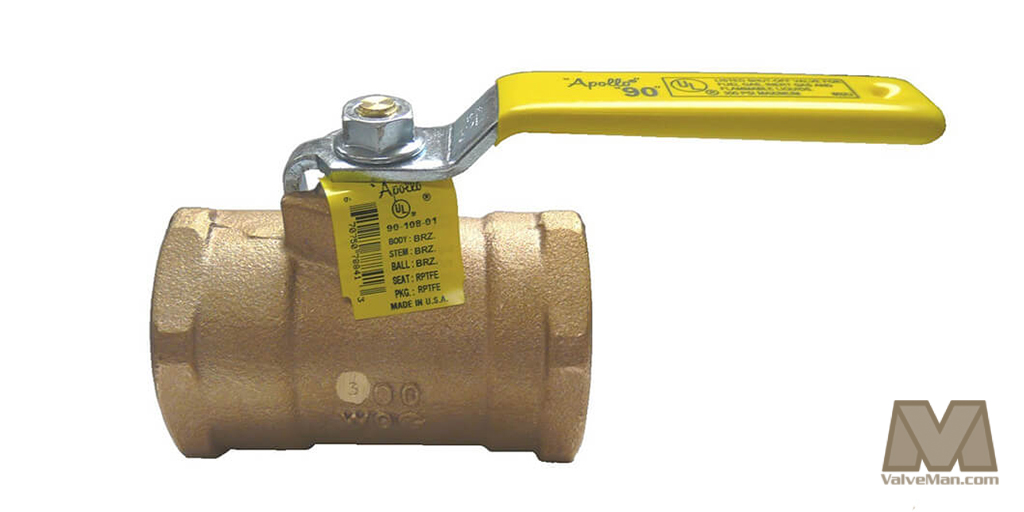

For instance, a bronze ball valve incorporates a sphere (the ball) with a hole through its middle as its obstructing device. When the hole aligns with the flow path, fluids pass freely. Conversely, when the ball is turned so that the hole is perpendicular to the path, the flow becomes effectively blocked.

Gate and globe valves work on a different mechanism altogether; they feature a movable disc or wedge which rises and descends into the flow path to allow or block transfer respectively.

Where Are Bronze Valves Used?

The applications for bronze valves are numerous due to their durability and wide-ranging adaptability. They are extensively used in plumbing systems across residential, commercial, and industrial settings due to their excellent corrosion resistance. By nature of their sturdy construction and the non-reactive properties of bronze, these valves are typically employed in instances where corrosive agents and high temperatures are expected.

Other common sectors include marine applications, because of their excellent seawater resistance, and in industries that use a lot of heated or cooled water like HVAC systems. Bronze valves are also often found in oil and gas industries as part of the pipeline control mechanism, in the manufacturing sector, within power plants, and more.

Regardless of the industry you work in, if you find yourself needing a bronze valve of any kind, you’re bound to find it right here at ValveMan. From simple ball valves all the way to butterfly valves, we’ve got you covered.

The top 5 applications of bronze valves may be debatable, but the following 5 are the most likely. Bronze has been favored for plumbing and pipeline valves for centuries because of its ductile strength and ease of casting, as well as its machine ability, and other metallurgical qualities. The 5 applications for bronze valves listed here are a reflection of these qualities.

Top 5 bronze valve applications

1. Portable Water Lines: Like brass, bronze is an alloy made primarily from copper. Because of its water purifying properties (copper kills bacteria), copper has always been the traditional choice for piping material when it comes to drinking water. A copper alloy, bronze is easy to cast into valves. Bronze is soldered to copper tubing quite easily because of similarities. While lead was used for centuries to make the alloy more malleable, it is frequently being replaced with no-lead metalloid alternatives today.
2. When a Bronze Valve is Preferable Over a Brass Valve: Dezincification. Bronze typically has a much lower zinc content than brass, and is far less susceptible to corrosion through the chemical reaction known as dezincification, which is caused (typically) by impurities in water.
3. When the Line Size is 3" or under: Bronze valves are at there strongest when a 3" size or under. This is the optimal range for bronze valves when a media is exerting pressure on the valve body. While larger bronze valves are available, they are usually for low pressure applications. Bronze is also a good choice for this size of valve for cost reasons.
4. Heating/Cooling: Because of its nature, bronze valves are an excellent choice for heating and cooling applications. Bronze valves are often used for steam because of their high resistance to rust and corrosion, and they are equally favorable for coolants in HVAC and other refrigeration units.
5. 4-Way Ball Valves, Multi-port Valves, and Manifolds: Bronze is the number one choice for multi-port valves because of its exceptional casting characteristics. Today's complex valves are cast to exacting standards.

How to Choose the Right Bronze Valve?

Choosing the right bronze valve from ValveMan depends on various factors centered upon specific application needs. Firstly, understand the basic specifications such as operating pressure, maximum temperature, and pipe size where the valve will be installed. You must also consider the media that will flow through it; certain compounds may react with bronze under specific conditions, so be sure to look for any possible chemical reactions.

Valve type is another crucial selection criterion. Ball valves are perfect for shutoff applications due to their simple quarter-turn operation. Globe valves enable precise throttling making them ideal for regulating flow, while gate valves are great for on/off control with low pressure drop.

Each valve type comes with its set of advantages; hence, understanding your system’s needs will guide you toward choosing the right kind of bronze valve.

Maintenance and Lifespan of Bronze Valves

When carefully maintained and properly installed, they can serve your needs for many years, often outlasting alternatives made from other materials. The exact lifespan of bronze valves depends on various aspects such as operational factors, usage frequency, and the specific environment. Nevertheless, they often have a life expectancy of up to a few decades under optimal conditions.

Bronze valves are known for their exceptional durability, which makes them an excellent investment for various applications. Their resistance to wear and tear, extending even to the harshest conditions, contributes widely to their longevity.

This doesn’t mean that you can forgo the regular maintenance of your bronze valves. It is a crucial component of maximizing the lifespan and performance of these valves. This involves periodic cleaning and inspection to check for any irregularities or signs of damage. Proactive replacement of components showing wear also helps in preventing sudden valve failure.

Why Choose ValveMan For All Your Valve Needs?

At ValveMan, we are always ready to provide advice about valve selection based on our extensive industry experience. Whether you need a single bronze valve for a small-scale project or a batch for industrial applications, our team is here to help you find the perfect fit for your particular needs.
