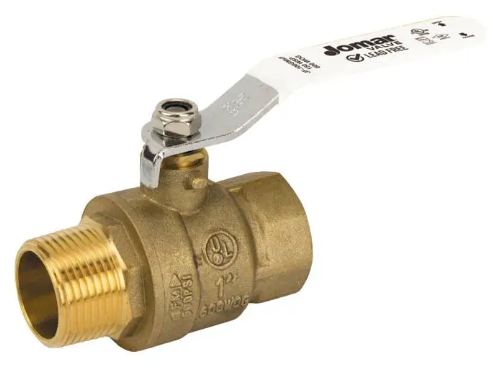

1" Jomar Valve JF-100GMxF, 2 Piece, Full Port, Dezincification Resistant Lead Free Brass, MNPT x FNPT Connection, Stainless Steel Ball & Stem, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $59.89
Starting At:
$42.99
(You save
$16.90
)
- Size Dropdown:
- True
1" Jomar Valve JF-100GMxF 2 Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Gland Follower and Single O-Ring Stem Design
- Blow-Out Proof Stem
- 100% Leak Tested
- IAPMO Certified - NSF 61 & NSF 372
- Wetted Surfaces Contain Less than .25% Content
Certifications/Approvals
- IAPMO Certified
- NSF 61-8
- NSF 372
- Uniform Plumbing Code (cUPC)
- IAPMO/ANSI Z1157-2014
- NSF/ANSI 14-2014
- FM Approval (1/2" - 2)
- MSS SP-110
- ANSI B1.20.1
Technical Specifications
Item
Ball Valve
Size
1"
Port
Full Port
Design Type
2-Piece
End Connection
MNPT x FNPT
Body Material
Lead Free Brass - C46400
Ball Material
304 Stainless Steel
Handle Type
Lever
Seat Material
PTFE
Stem Material
304 Stainless Steel
Stem Design
Blowout Proof
Max Pressure
600 psi WOG
Max Temp
450°F
