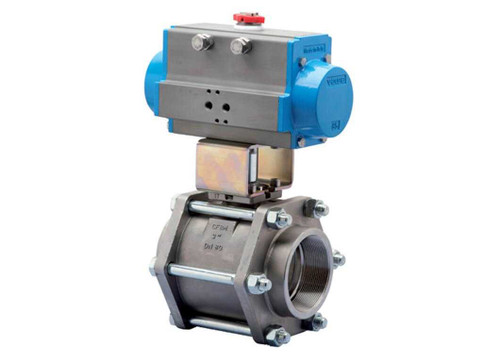

2-1/2" Bonomi 8P0196 - Ball Valve, 3 Piece, 2-Way, Stainless Steel, FNPT Threaded, Full Port, with Spring Return Pneumatic Actuator

Brand : Bonomi Valves

MSRP: $1,882.13
Starting At: $1,451.99
(You save $430.14 )
Size Dropdown:
True
2-1/2" Bonomi 8P0196 - Ball Valve, 3 Piece, 2 way, Stainless Steel, FNPT Threaded, Full Port, with Spring Return Pneumatic Actuator
View Details

Bonomi 8P0196 - Technical Specification

Item
2-Way Pneumatically Actuated Ball Valve
Body Material
CF8M Stainless Steel
Port
Full Port
Ball Material
316 Stainless Steel
Seat Material
R.P.T.F.E.
Packing Material
R.P.T.F.E.
End Connection
NPT
Pressure Rating
Steam pressure to 250 psi. (Refer to P/T Chart)
Temp. Rating
-4°F to +302°F (Refer to P/T Chart)
Design Type
3-Piece
Air Supply Needed
80 PSI
Actuation Type
Spring Return
Stem Design
Blowout Proof
Approvals
See Specification Sheet




Size Dropdown:
True
