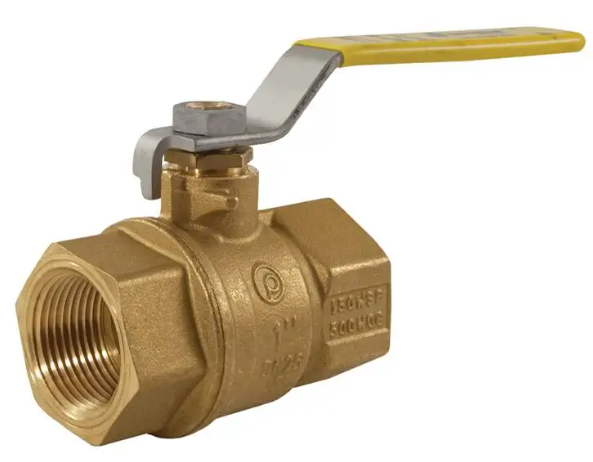

2" Jomar Valve T-100NE-OH, 2 Piece, Full Port, Brass, NPT Threaded, Oval Handle, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $233.54
Starting At:
$166.99
(You save
$66.55
)
- Size Dropdown:
- True
Country of Origin: Made in Italy
2" Jomar Valve T-100NE-OH 2 Piece Ball Valve Technical Specs
Features
- Triple Sealing Stem with 2 FKM O-Rings and 2nd Generation PTFE Seal
- Blow-Out Proof Stem
- 100% Leak Tested
- 100% Made in Italy
- Leakproof Stem - Lifetime Warranty
- 29 in-Hg Vacuum Rating
- Accessories Available
Certifications/Approvals
- UL Listed (1/4" - 2")
- MHKZ - Manual Valves
- YQNZ - Compressed Gas Shut-Off Valves
- YRBX - Flammable Liquid Shut-Off Valves
- YRPV - Gas Shut-Off Valves
- YSDT - LP Gas Shut-Off Valves
- SFJQ - Valves, Refrigerant
- CSA Certified
- ANSI Z21.15 (.5 PSIG) (1/4" - 3")
- ASME B16.33 (125 PSIG) (1/2" - 2")
- ASME B16.38 (125PSIG) (2-1/2" - 4")
- CSA 3.16-15 (125 PSI) (1/4" - 4")
- CGA 9.2 (1/4" - 3")
- Delta C (3/8" - 3/4")
- MSS SP-110
- ANSI B1.20.1
- FM Approval (1/4" - 3/4" 600 WOG, 1" - 2" 500 WOG)
Technical Specifications
Item
Ball Valve
Size
2"
Port
Full Port
Design Type
2-Piece
End Connection
NPT Threaded
Body Material
Brass C37700
Ball Material
TEA Coated Brass
Handle Type
Lever
Seat Material
PTFE
Stem Material
Brass
Stem Design
Blowout Proof
Max Pressure
500 psi WOG, 150 psi steam
