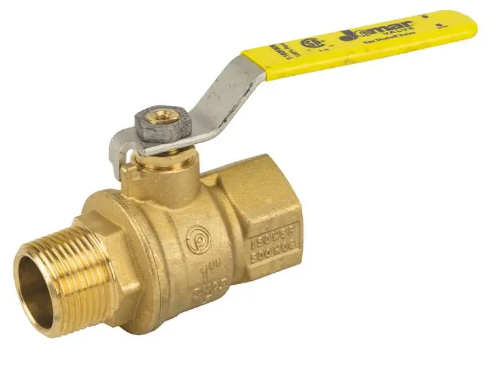

3/8" Jomar Valve T-100FMN, 2 Piece, Full Port, Brass, MNPT x FNPT Connection, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $24.01
Starting At:
$17.99
(You save
$6.02
)
- Size Dropdown:
- True
Country of Origin: Made in Italy
3/8" Jomar Valve T-100FMN 2 Piece Ball Valve Technical Specs
Features
- Blow-out Proof Stem
- Triple Sealing Stem with 2 FKM O-Rings and PTFE G300 Seal
- 100% Leak Tested
- 100% Made in Italy
- Leakproof Stem - Lifetime Warranty
- 29 in-Hg Vacuum Rating
- Accessories Available
Certifications/Approvals
- CSA Certified (1/4" - 1")
- ASME B16.33 (125 PSIG)
- CGA 3.16 (125 PSIG)
- MSS SP-110
- ANSI B1.20.1
Technical Specifications
Item
Ball Valve
Size
3/8"
Port
Full Port
Design Type
2-Piece
End Connection
MNPT x FNPT
Body Material
Brass C37700
Ball Material
Chrome Plated Brass
Handle Type
Lever
Seat Material
PTFE
Stem Material
Brass
Stem Design
Leak-Proof, Blowout-Proof Stem
Max Pressure
600 psi WOG, 150 psi steam
