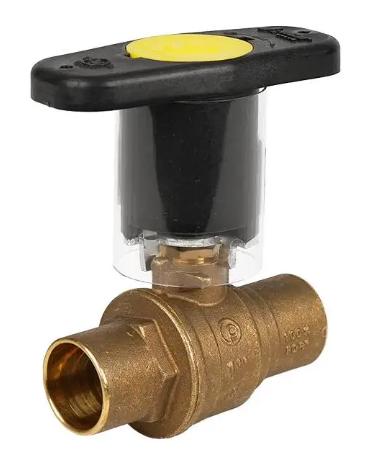

Jomar Valve S-100CG-IH Series, 2 Piece, Full Port, Soldered Ends, Dezincification Resistant Brass, Thermal-Block Insulated Handle, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $69.44
Starting At:
$49.99
(You save
$19.45
)
- Size Dropdown:
- True
Country of Origin: Made in Italy
Jomar Valve S-100CG-IH Series 2-Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Triple Sealing Stem with 2 FKM O-rings and PTFE G300 Seal
- Blow-out Proof Stem
- 100% Leak Tested
- 100% Made in Italy
- Leakproof Stem - Lifetime Warranty
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
- UL-2043 Certified Insulated Handle
- NSF 372
- NSF 61-8
- NSF 61 - Annex G
- ASME/ANSI B16.18
- MSS SP-110
- Meets IS0 6509
Technical Specifications
Item
Ball Valve
Size
1/2" to 2"
Port
Full Port
Design Type
2-Piece
End Connection
Solder
Body Material
Lead Free Brass - C27453
Ball Material
C28500 Brass (T.E.A. Coated)
Handle Type
Thermal-Block Insulated Locking Handle
Seat Material
PTFE
Stem Material
Lead-Free Brass
Stem Design
Blowout Proof
Max Pressure
(1/4" to 3/4) 600 psi, (1" to 2") 500 psi, (2-1/2" to 4") 400 psi, 150 psi steam
Max Temp
366°F
