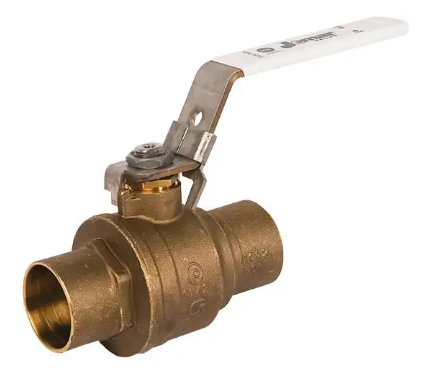

Jomar Valve S-100CSSG-LH Series, 2 Piece, Full Port, Soldered Ends, Dezincification Reistant Brass, Stainless Steel Ball & Stem, Latch Lock Handle, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $46.35
Starting At:
$33.99
(You save
$12.36
)
- Size Dropdown:
- True
Country of Origin: Made in Italy
Jomar Valve S-100CSSG-LH Series 2-Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Triple Sealing Stem With 2 FKM O-Rings and PTFE G300 Seal
- Blow-out Proof Stem
- 100% Leak Tested
- 100% Made in Italy
- Leakproof stem - Lifetime Warranty
- 29 in-Hg vacuum rating
- Wetted surfaces contain less than .25% lead content
Certifications/Approvals
- NSF 372
- NSF 61-8
- NSF 61 - Annex G
- MSS SP-110
- ANSI B1.20.1
- Meets IS0 6509
Technical Specifications
Item
Ball Valve
Size
1/2" to 2"
Port
Full Port
Design Type
2-Piece
End Connection
Solder
Body Material
Lead Free Brass - C27453
Ball Material
316 Stainless Steel
Handle Type
Latch Lock Handle
Seat Material
PTFE
Stem Material
316 Stainless Steel
Stem Design
Blowout Proof, Extended Stem
Max Pressure
(1/4" to 3/4") 600 psi, (1" to 2") 500 psi, 150 psi steam
Max Temp
400°F
