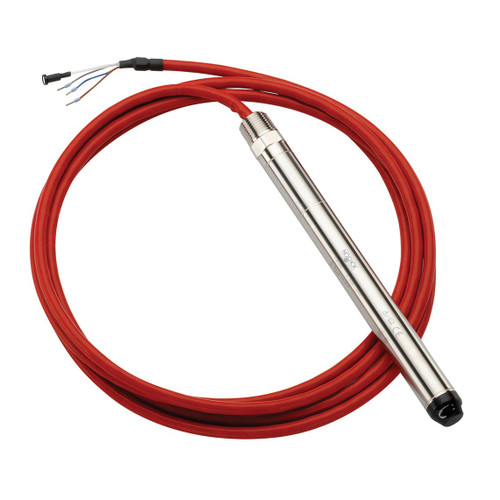

NOSHOK 611 Series Small Diameter Submersible Level Transmitters, 611-25-1-43-N-150-CBC, 0 to 25 psig, ±1% of Span Accuracy, 4 to 20 mA Output + HART® with Cable Clamp, Nose Cone & 150 ft Polyurethane (PUR) Cable
Brand : NOSHOK
Starting At:
$2,088.99
- Size Dropdown:
- True
611 Series - Small Diameter Submersible Level Transmitters
- Hydrostatic level measurement for use in applications including bore holes and wells with small diameters (outer diameter 0.87")
- Low power output signals for battery-powered applications, and optional temperature output available
- 5:1 turndown using optional HART® signal
Technical Specifications
Type
Submersible Level Transmitter
Series
611
Pressure Range1
0 to 25 psig
57.7 ft H2O
Full Scale Best Fit Straight Line (BFSL) Accuracy (±)
± 1.0% of span %
Note for Accuracy
Includes non-linearity, hysteresis, zero offset and end value deviation per IEC 61298-2
Accuracy after turndown via HART®, ≤ ±1.25% of scaled span (0.75% optional)
Temperature sensor 14 ºF to 176 ºF (-10 ºC to 80 ºC): ≤ ± 3.3 ºF.
Output Signal
4 mA to 20 mA, 2-Wire and HART® Signal
Process Connections
Nose Cone
Electrical Connection
Standard Polyurethane (PUR) Cable, Optional Water-Blocked Polyvinyl Chloride (PVC) Cable (200+ psi Only), Optional Fluorinated Ethylene Propylene (FEP) Cable (38)
Options
Cable Clamp
Style
Level Transmitter
Approximate Weight
10.6 oz
Storage Temperature [Min]
-40 ºC
-40 ºF
Storage Temperature [Max]
80 ºC
176 ºF
Optional Accuracy
± 0.5 of span
Optional Housing Material
318 LN
Warranty
3 yr
Stability
≤ ± 0.1% of span per year
Switch on Time (Output signals without HART®)
≤ 150 ms
Switch on Time (Output Signals with HART®)
≤ 250 ms
Settling Time (Output Signals without HART®)
≤ 100 ms
Settling Time (Output Signals with HART®)
≤ 250 ms
Durability
< 100,000,000 full scale cycles
Power Requirement2
4mA to 20 mA: 8 Vdc to 36 Vdc
4 mA to 20 mA and HART®: 12-36 Vdc
0.1 to 2.5 Vdc: 3.6 - 36 Vd
Load Limitations
4 mA to 20 mA: ≤ (Vpower - 8 V) / 0.022 A
4 mA to 20 mA and HART®: ≤ (Vpower - 9.6 V) / 0.022 A
Proof Pressure
5 Times Range
Measuring Element
Cap: Polyvinylidene Fluoride (PVDF)
Sensor: 316 stainless steel, options Hastelloy C-276
Cable: Polyurethane, optional FEP
Connection Material
316 Stainless Steel
Housing Material
316 Stainless Steel
Environmental Rating
Ingress Protection (IP68)
Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Electrical Protection
Reverse polarity protection, short circuit and resistance to overvoltage :DC 40V and increased overvoltage for lightning protection. Normal discharge current ≤ 10 kA, Rise time 8/20 µs
Submersion Depth [Max]
325 ft (100 m)
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6
4 g
Cable Length
150 ft
Temperature Ranges
- Compensated Temperature Range
- 32 to 176 ºF
- 0 to 80 ºC
- Note for Compensated Temperature Range
- Effect ± 0.01%/ºF for zero and span
- Standard Media Temperature Range
- 14 to 122 ºF
- -10 to 50 ºC
- Optional Media Temperature Range
- -40 to 176 ºF
- -40 to 80 ºC
Prop 65 Warnings
- WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Limitations Which Apply Are
- These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.
In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Application
- Well head measurement
- Groundwater monitoring
- Level measurement in open bodies of water
- Sewage lift and pumping stations
- Setting ponds and rainwater
Additional Information
- 316 Stainless Steel, PVDF and Polyurethane wetted parts
- CE compliant to suppress RFI, EMI and ESD
- Ideal for applications including well head measurement, groundwater monitoring, level measurement in open bodies of water, sewage lift and pumping stations, setting ponds and rainwater
Options and Accessories
- Cable Clamp (CBC)
- Lightning Protection (LP)
- Cable Junction Box (NEMA 4X) (JB) (Not available with any hazardous location approved models)
- Increased Media Temperature (-40 ºF to 176 ºF) (HT) (Must use FEP cable if used with hazardous location approved models)
