Ball Valves

What is a Ball Valve?

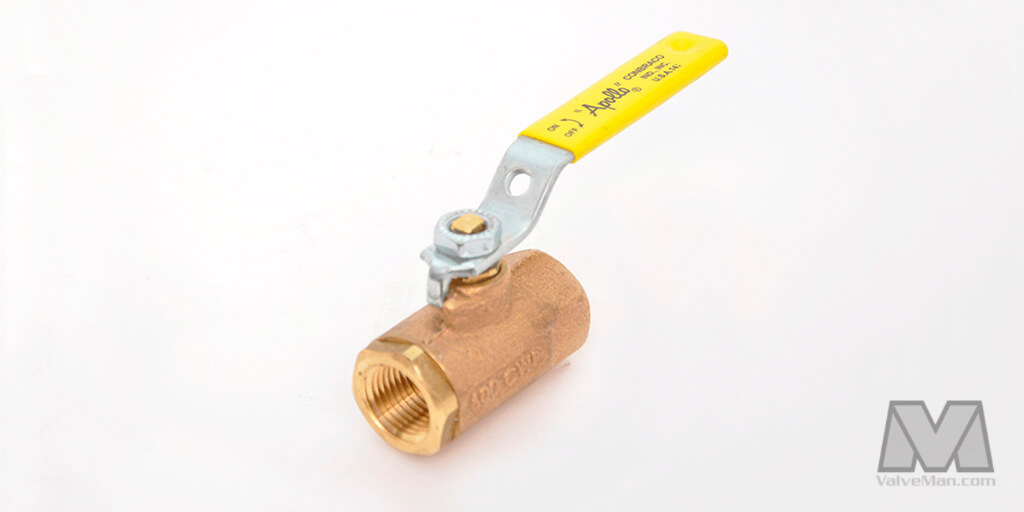

What are ball valves? Ball valves are valves that permit or halt the flow of media through a pipeline. A typical ball valve includes an inlet, an outlet, and a housing for the valve itself, which is a spherical shape and hollow.

An external control mechanism is attached to a stem--which fits snuggly into a slot at the top of the ball--rotates the ball to an open or closed position. When the valve is "open," the hollow bore will be in line with the pipe, allowing material to pass through.

Conversely, when the valve is "closed," the hollow bore positions itself perpendicular to the pipe, thus stopping the flow of media. A handle, lever, or wheel turns the stem (on manually operated valves). It's worth noting that the bore diameter may have a significant impact on the potential rate of flow.



Common Applications of Ball Valves

Ball valves can be used in thousands of applications and are commonly employed throughout the industrial world. Ball valves come in a wide variety of designs: full port (which utilizes an oversized ball for unrestricted flow), a "v" port ball valve for flow control (the ball is actually a "v" shape), a trunnion ball valve, which may have additional mechanical anchoring--for high-velocity flow--and a standard port ball valve, which is usually a size smaller than the pipe, for a mildly restricted flow.

A ball valve frequently used in the food industry is known as a cavity-filled ball valve. A cavity filler incorporates extendable seals to fill the cavity around the ball, therefore limiting potential bacteria growth. Body styles include single-piece, split body (two-piece), three-piece body, top entry, and welded body.

Ball Valve Construction

Design elements may include, but are not limited to, any of these materials: stainless steel, brass, bronze, chrome, titanium, PVC, PFA-lined, etc. Some ball valves are flanged, and the pieces are bolted together.

Many of the smaller, lower flow capacity ball valves (reduced port) are dispensable and inexpensive. These replaceable types of ball valves are often called "throw-away valves." Ball valves made in America (and meeting ANSI qualifications) are of the highest quality.

Three-piece, top entry, and some other ball valves, typically for industrial applications, are made to last as long as possible and are often repairable when they fail in the field. Conforming to today's laws in America, most valves and valve fittings are available "lead-free."

Some of the different ball valve types include split-body ball valves, vented ball valves, and metal-seated ball valves.


Other Uses for Ball Valves

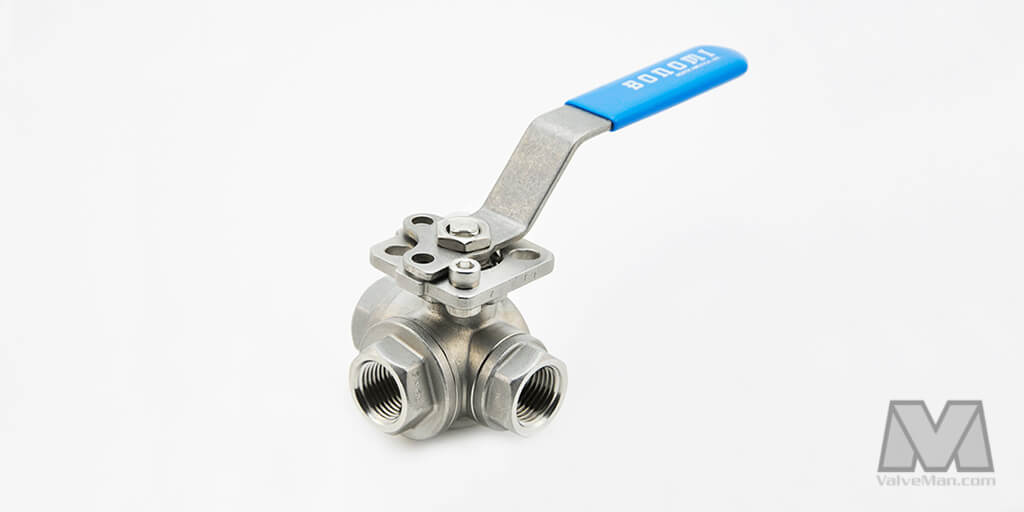

Ball valves may also include 2, 3, and multiple ports. Multi-port ball valves often utilize electric or pneumatic actuators, and some are so sophisticated they can even regulate flow besides just diverting, stopping, or allowing flow. Nevertheless, ball valves are most typically used in "shut-off" applications.

Ball Valve FAQs

Can you leave a ball valve partially open?

While you can technically leave a ball valve partially open for extended periods of time, it can have negative effects on the valve overall. For instance, a high-pressure drop across the ball may lead to a damaged soft valve seat.

While you may use a valve with a ball for moderate throttling, these types of valves are best suited for basic functions like starting and stopping flow. If you know how a ball valve works, you can use it efficiently for a wide range of functions by placing the ball valve handle in the appropriate position (only giving it a quarter turn, for example).

However, the fact remains that it's unwise to leave this type of pivoting ball valve partially oven for an extended period. They serve best as a type of gate valve where you need to control when the flow starts and stops.

Can you overtighten a ball valve?

Yes, in some cases, it is entirely possible to overtighten a ball valve. Doing so will lead to an increase in wear and tear and reduce the lifespan of your valve. The solution to this is, if tightening is required, to do it incrementally and not beyond what is absolutely necessary.

How do floating ball valves and trunnion ball valves differ?

In a floating ball valve, the rotary ball is movable, while in trunnion ball valves, both the upper and lower stems are fixed. Floating ball valves are generally best for use in low or medium-pressure applications. Trunnion ball valves work best for high-pressure applications.

The floating ball design is generally significantly less expensive than the trunnion valves.

How do one-, two-, and three-piece ball valves differ?

Floating ball valves, as with other ball valves, come in several different formats. In one-piece ball valves, the valve body consists of only one portion. In two-piece ball valves, two different portions thread together to create the valve body. Three-piece ball valves, as the name suggests, consist of three different parts.

What are the cons of ball valves?

Ball valves can be an incredibly useful addition to many different types of systems. However, that doesn't mean that they're without their disadvantages. Some of these include the following:

  • If you use a valve with a ball for slurries, it's liable to get stuck in the open position.
  • Thick liquids may solidify within the valve body, increasing the operating torque required.
  • Most ball valves have limited flow control (meaning it doesn't make an optimal control valve).
