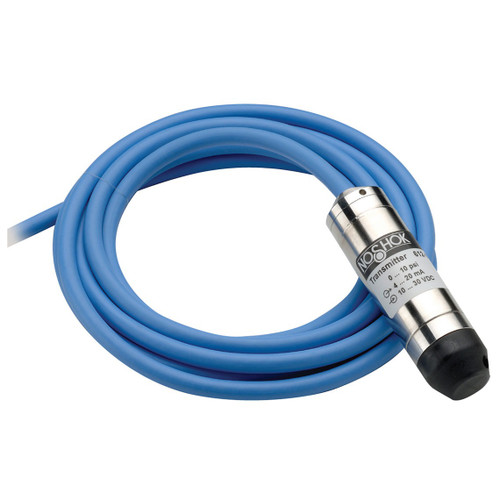

NOSHOK 612 Series Submersible Level Transmitters, 612-15-1-1-N-50, 0 to 15 psig, 0.25% Accuracy BFSL, 4 to 20 mA, Nose Cone, 50 ft Polyurethane (PUR) Cable
Brand : NOSHOK
Starting At:
$1,220.99
- Size Dropdown:
- True
612 Series Submersible Level Transmitters
- Ranges from 0 inH2O to 50 inH2O through 0 psig to 1,000 psig
- Current and voltage outputs available
- 316 Stainless Steel, Polyamide and Polyurethane wetted parts
Technical Specifications
Type
Submersible Level Transmitter
Series
612
Pressure Range
0 to 15 psig
34.6 ftH2O
Full Scale Best Fit Straight Line (BFSL) Accuracy (±)
0.25 %
Note for Accuracy
Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors.
Output Signal
4 mA to 20 mA, 2-wire
Process Connections
Nose Cone
Electrical Connection
Standard Polyurethane (PUR) Cable
Style
Level Transmitter
Storage Temperature [Min]
-30 ºC
-22 ºF
Storage Temperature [Max]
80 ºC
175 ºF
Stability
≤ ± 0.2% full scale for 1 year, non-accumulating
Response Time
≤1 ms
Service Life
< 100,000,000 load cycles
Power Requirement
10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire, 0 Vdc to 5 Vdc, 3-wire)
5 Vdc to 30 Vdc (0.5 Vdc to 2.5 Vdc, 3-wire)
14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-wire)
Load Limitations
≤ (VPower-10)/0.020 Amp for 4 mA to 20 mA
≥ 10,000 Ω for 0 Vdc to 10 Vdc, 3-wire
≥ 5,000 Ω for 0 Vdc to 5 Vdc, 3-wire
Proof Pressure
2 Times Range
Burst Pressure
4 Times Range
Measuring Element
Cap: Polyamide, 316 stainless steel with weighted Nose Cone
Cable: Polyurethane, optional FEP or PVC with double water block
Connection Material
316 Stainless Steel
Housing Material
316 Stainless Steel
Environmental Rating
Ingress Protection (IP68)
Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Electrical Protection
Reverse polarity protection, short circuit and optional lightning protection per European Standards (EN) 6100-4-5; 1.5J
Shock According to International Electrotechnical Commission (IEC) 60068-2-27
100 g
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6
15 g
Approximate Weight
7 oz
Warranty
3 yr
Cable Length
50 ft
Related Items
612-CABLE-CLAMP, Submersible Cable Clamp
612-FILTER-ELEMENT, Submersible Filter Element
Temperature Ranges
- Compensated Temperature Range
- 32 to 122 ºF
- 0 to 50 ºC
- Note for Compensated Temperature Range
- Effect ± 0.01%/ºF for zero and span
- Media Temperature Range
- 14 to 122 ºF
- -10 to 50 ºC
Prop 65 Warnings
- WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Options and Accessories
- Cable Clamp (CBC)
- Cable Junction Box (NEMA 4X) (JB)
- Desiccant Cartridge (DC)
- Filter Element (FE)
- Lightning Protection (LP) (Only available with PUR cable)
- PT100 RTD1 (PT1) (Only available with PUR cable)
Limitations Which Apply Are
- These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.
In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Application
- Irrigation
- Tank monitoring
- Water & wastewater
- Well head measurement
Additional Information
- CE compliant to suppress RFI, EMI and ESD
- Ideal for applications including irrigation, tank monitoring, water & wastewater and well head measurement
