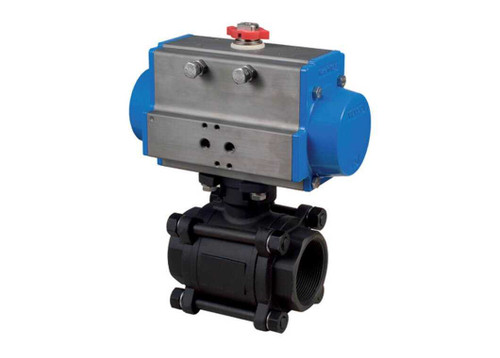

1 1/2" Bonomi 8P0621 - Ball Valve, 3 Piece, 2 way, Carbon Steel, FNPT Threaded, Full Port, with Spring Return Pneumatic Actuator

Brand :

MSRP: $660.00
Starting At: $575.99
(You save $84.01 )
Size Dropdown:
True

Bonomi 8P0621 - Technical Specification

Item
2-Way Pneumatically Actuated Ball Valve
Body Material
Carbon Steel
Port
Full Port
Ball Material
316 Stainless Steel
Seat Material
TFM1600
Packing Material
P.T.F.E.
End Connection
NPT
Pressure Rating
1/4" to 2" 1000 psi, 2-1/2" to 4" 800 psi - 150 psi steam (Refer to P/T Chart)
Temp. Rating
-4°F to +302°F (Refer to P/T Chart)
Design Type
3-Piece
Air Supply Needed
80 PSI
Actuation Type
Spring Return
Stem Design
Blowout Proof
Approvals
See Specification Sheet
