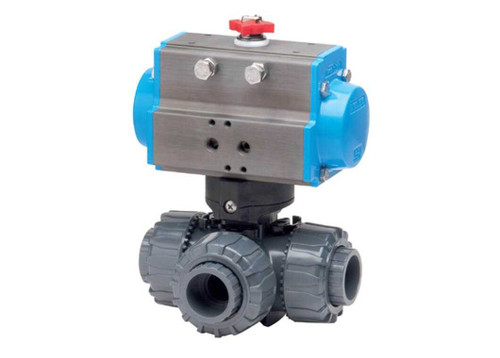

1-1/4" Bonomi 8P3TSRPVC - Ball Valve, 3-way, T-port, PVC, Full Port, with Spring Return Pneumatic Actuator
Brand : Bonomi Valves
MSRP: $853.00
Starting At:
$743.99
(You save
$109.01
)
- Size Dropdown:
- True
Bonomi 8P3TSRPVC - Technical Specification
Item
3-Way Pneumatically Actuated Ball Valve
Porting
T-Port
Body Material
PVC
Port
Full Port
Ball Material
PVC
Seat Material
P.T.F.E.
Packing Material
EPDM
Pressure Rating
232 PSI (Refer to P/T Chart)
Valve Temp. Rating
-4°F to +250°F
Design Type
Dual Union Nut Locks
Air Supply Needed
80 PSI
Actuation Type
Spring Return
End Connection
NPT and Socket Ends Included
Approvals
See Specification Sheet
