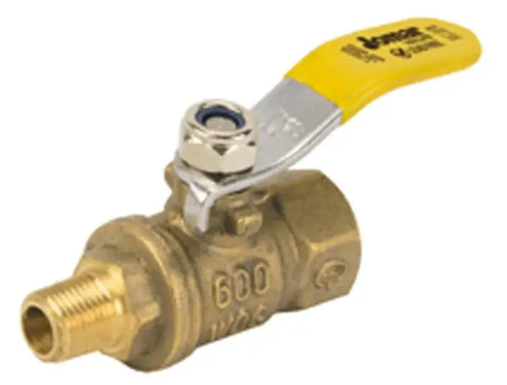

1/4" FIP x 1/4" FIP Jomar Valve T-83CG 100-400G, 2 Piece, Full Port, Dezincification Resistant Lead-Free Brass, Threaded, Stainless Steel Ball & Stem, 600 WOG Mini Ball Valve
Brand : Jomar Valve
MSRP: $14.30
Starting At:
$10.99
(You save
$3.31
)
- Size Dropdown:
- True
1/4" FIP x 1/4" FIP Jomar Valve T-83CG 100-400G 2 Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Large Raised Wrench Flats
- Blow-Out Proof Stem
- 100% Leak Tested
- IAPMO Certified - NSF 61 & NSF 372
- Wetted Surfaces Contain Less than .25% Content
Certifications/Approvals
- IAPMO Certified
- NSF 61-8
- NSF 372
- Uniform Plumbing Code (cUPC)
- IAPMO/ANSI Z1157-2014
- NSF/ANSI 14-2014
- MSS SP-110
- ANSI B1.20.1
Technical Specifications
Item
Mini Ball Valve
Size
1/4" FIP x 1/4" FIP
Port
Full Port
Design Type
2-Piece
End Connection
FIP x FIP
Body Material
Lead-Free Brass - C46500
Ball Material
304 Stainless Steel
Handle Type
Lever
Seat Material
PTFE
Stem Material
304 Stainless Steel
Stem Design
Blowout Proof
Max Pressure
600 psi WOG, 150 psi steam
Max Temp
500°F
