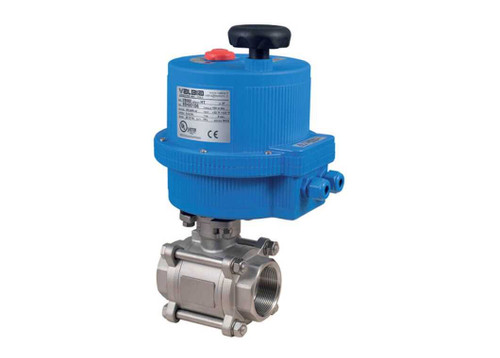

2 1/2" Bonomi 8E0720-00 - Ball Valve, 3 Piece, 2 way, Stainless Steel, FNPT Threaded, Full Port, Full Port, with Electric Actuator

Brand :

MSRP: $1,563.00
Starting At: $1,362.99
(You save $200.01 )
Size Dropdown:
True
2 1/2" Bonomi 8E0720-00 - Ball Valve, 3 Piece, 2 way, Stainless Steel, FNPT Threaded, Full Port, Full Port, with Electric Actuator
View Details

Bonomi 8E0720-00 - Technical Specification

Item
2-Way Electrically Actuated Ball Valve
Body Material
CF8M Stainless Steel
Design Type
3-Piece
Port
Full Port
Ball Material
316 Stainless Steel
Seat Material
TFM1600
Packing Material
P.T.F.E.
End Connection
Threaded (FNPT)
Pressure Rating
1/4" to 2" 1000 psi, 2-1/2" to 4" 800 psi - 150 psi steam
Temp. Rating
-4°F to +131°F
Control
On/Off
NEMA Rating
NEMA 4/4x
Available Voltages
100-240V - AC, 24V - AC/DC, 12V - AC/DC
Actuation Type
N/A
Stem Design
Blowout Proof
Approvals
See Specification Sheet
