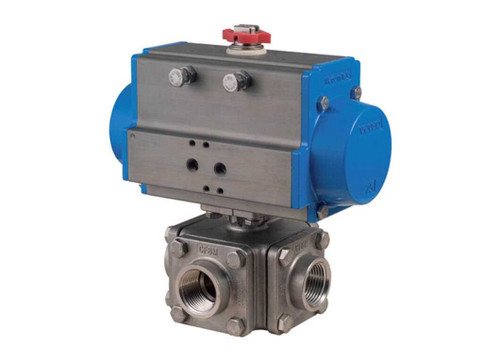

2 1/2" Bonomi SR97T-00 - Ball Valve, T-Port, Block Body, Stainless Steel, FNPT Threaded, Full Port, with Spring Return Pneumatic Actuator

Brand :

MSRP: $3,486.00
Starting At: $3,037.99
(You save $448.01 )
Size Dropdown:
True
2 1/2" Bonomi SR97T-00 - Ball Valve, T-Port, Block Body, Stainless Steel, FNPT Threaded, Full Port, with Spring Return Pneumatic Actuator
View Details

Bonomi SR97T - Technical Specification

Item
3-Way Pneumatically Actuated Ball Valve
Porting
T-Port
Body Material
CF8M Stainless Steel
Port
Full Port
Ball Material
316 Stainless Steel
Seat Material
R.P.T.F.E.
Packing Material
P.T.F.E.
End Connection
FNPT Threaded
Pressure Rating
1/2" to 1" - 1000 psi, 1-1/4" to 2" - 800 psi, 2-1/2" to 3" - 600 psi, 4" - 300 psi (Refer to P/T Chart)
Valve Temp. Rating
-4°F to +302°F
Design Type
Block Body
Air Supply Needed
80 PSI
Actuation Type
Spring Return
Stem Design
Blowout Proof
Approvals
See Specification Sheet




Size Dropdown:
True
