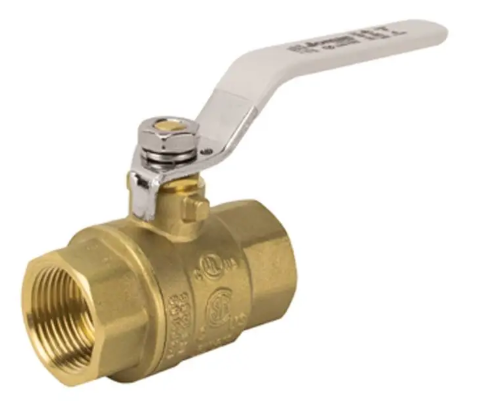

3" Jomar Valve T-150G, 2 Piece, Full Port, Dezincification Resistant Lead-Free Brass, NPT Threaded, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $528.48
Starting At:
$377.99
(You save
$150.49
)
- Size Dropdown:
- True
3" Jomar Valve T-150G 2 Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Gland Follower and Single O-Ring Stem Design
- Blow-Out Proof Stem
- IAPMO Certified - NSF 61 & NSF 372 Certified
- Wetted Surfaces Contain Less than .25% Content
Certifications/Approvals
- UL Listed
- VQGU - Trim & drain (1/2" - 2")
- MHKZ - Manual valves
- YQNZ - Compressed gas shut-off valves
- YRBX - Flammable liquid shut-off valves
- YRPV - Gas shut-off valves
- YSDT - LP gas shut-off valves
- IAPMO Certified
- NSF 61-8
- NSF 372
- CSA Certified (.5, 5, 125 PSIG) (1/2" - 2")
- CGA 3.16
- ASME B16.33
- ANSI Z21.15
- ASME B16.44
- CGA CR91
- MSS SP-110
- ANSI B1.20.1
- FM Approval (1/4" - 2")
Technical Specifications
Item
Ball Valve
Size
3"
Port
Full Port
Design Type
2-Piece
End Connection
NPT Threaded
Body Material
Lead-Free Brass - C46500
Ball Material
304 Stainless Steel
Handle Type
Lever
Seat Material
PTFE
Stem Material
Brass
Stem Design
Blowout Proof
Max Pressure
600 psi WOG, 150 psi steam
Max Temp
500°F
