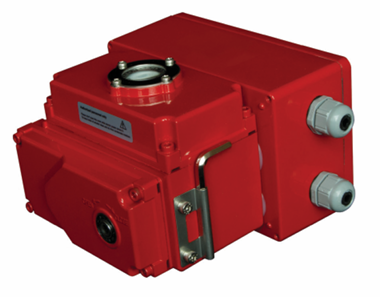

Jomar Valve AE-700M, Double Acting, Nema 4X, Manual Override Electric Actuator
Brand : Jomar Valve
MSRP: $2,266.30
Starting At:
$1,618.99
(You save
$647.31
)
- SKU:
- AE-700M
- Size Dropdown:
- True
Jomar Valve AE-700M, Double Acting Electric Actuator Technical Specs
Features
- Hard anodized aluminum housing with external powder coating for severe duty applications
- Enclosure: IP67, O-ring sealed
- ISO 5211 mounting
- Remote Position Controller (RPC) modulation
- 90° operation
- Adjustable mechanical stops to prevent over travel
- Auto Calibration
- Position indicator
- Manual override standard
- 120V / 1Ph / 60Hz
- Thermally protected induction motor
- Worm gearing, no brake required
- Spring loaded terminal block for ease in wiring
Technical Specifications
Item
Modulating Electric Actuator
Actuator Type
Double Acting
NEMA Rating
NEMA 4x
Duty Cycle
S2: 30 min ; S4 (50%)
Torque (in lbs)
700
Voltage Option
120V
Motor Insulation Class
Class E
Temp. Range
10°F to 150°F
Enclosure
IP67
