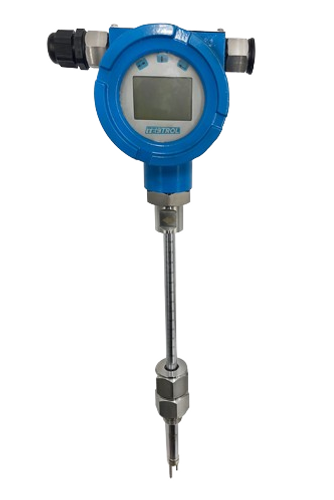

Tek-Trol Tek-Thermal 1700B-C-4-1-T-2-1-8-1-B Thermal Mass Flow Meter
Brand : Tek-Trol
Starting At:
$4,606.99
- SKU:
- 1700B-C-4-1-T-2-1-8-1-B
Tek-Trol Tek-Thermal 1700B-C-4-1-T-2-1-8-1-B Thermal Mass Flow Meter Technical Specs
Features
- Dual line LCD display with 3 setting button
- No pressure loss and it can be used on pipes from 1″ to 20″
- It has more compact design, which means smaller enclosure and thinner insertion tube probe
- Measure mass flow and standard flow directly
- It has self diagnostic function
- It has high accuracy data acquisition circuit
- High effective design of power supply
- Wide Turndown ratio 100:1
- Due to the thin diameter probe, it can be installed in pipe very easily and without stopping all the process
- Cost-effective model
Technical Specifications
Item
Thermal Mass Flow Meter
Process Connection
NPT (Insertion)
Service
Air and Nitrogen
Accuracy
±0.5% of Reading
Temp. Range
-40 °F to 302 °F (-40 °C to 150 °C)
Max. Pressure
232 psi
Output
4 to 20mA and Pulse standard; Modbus RS485 or HART optional
Power Requirements
13.5 VDC to 42 VDC or 85 VAC to 265 VAC
Enclosure Rating
IP65
