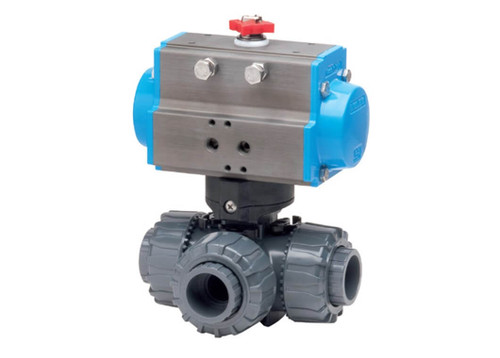

Bonomi 8P3LSRPVC Series - PVC, L-Port, Full Port, Ball Valve with Spring Return Pneumatic Actuator

Brand :

Starting At: $459.99
Size Dropdown:
True
Bonomi 8P3LSRPVC Series - PVC, L-Port, Full Port, Ball Valve with Spring Return Pneumatic Actuator
View Details

Bonomi 8P3LSRPVC Series - Technical Specification

Item
3-Way Pneumatically Actuated Ball Valve
Porting
L-Port
Body Material
PVC
Port
Full Port
Ball Material
PVC
Seat Material
P.T.F.E.
Packing Material
None. O-rings present in PVC valves
End Connection
Comes with Threaded (FNPT) and Socket Weld connection
Pressure Rating
232 PSI at 73F
Valve Temp. Rating
73F
Act. Temp Rating
Standard (-4F;+185F), High (-4F;+302F), Low (-40F;+185F)
Design Type
Multi-Port
Air Supply Needed
80 PSI
Actuation Type
Spring Return
Stem Design
Non-blowout Proof
Approvals
See Specification Sheet
