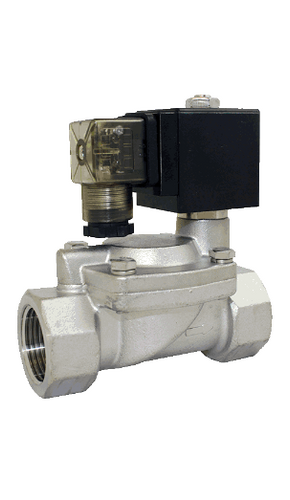

STC 2DS150- 1/2" NPT, Anti-Hammering, Slow Closing Pilot Solenoid Valve, 304 Stainless Steel Body, 2-Way, Normally Closed
Brand : STC Valve
MSRP: $137.95
Starting At:
$118.99
(You save
$18.96
)
- SKU:
- 2DS150-1/2
- Minimum Purchase:
- 1 unit
- Size:
- 1/2"
- Size Dropdown:
- True
STC 2DS150- 1/2" Stainless Steel, Pilot Solenoid Valve Technical Specs
Orifice
15mm
CV
3.7
Valve Type
2 Way
Action
Anti-Hammering
Slow Closing
Pilot Diaphragm
De Energized State
Normally Closed (NC)
Body Material
Standard 2DS Series Valve Body: 304 Stainless Steel
Upgraded 2DS Series Valve Body: 316 Stainless Steel
Seal: NBR (Buna N), or Viton (FKM)
Armature Assembly: Stainless Steel
Upgrade Option: Viton (FKM), EPDM
Op Temp
Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)
Media with Viton Seal: 14°F to 266°F (-10°C to 130°C)
Ambient: 23°F to 110°F (-5°C to 43°C)
Op Pressure
AC Coil: 4 PSI to 175 PSI
DC Coil: 4 PSI to 145 PSI
Elec. Connection
D: DIN 43650, Form A (2W200C)
ATEX: ATEX Explosion Proof Coil (2W200C-ATEX)
Coil Power
AC Coil: 28VA
DC Coil: 12-20W
Voltage Options
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty)
Installation
No Orientation Requirement
Service
Liquid, Water, Oil, Air
