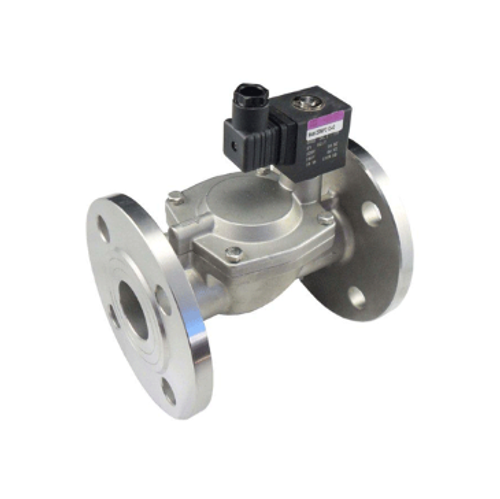

STC 2DSO500F- 2" Pilot, Solenoid Valve 2-Way, Normally Open, Anti-Hammering, Slow Closing
Brand : STC Valve
MSRP: $846.32
Starting At:
$725.99
(You save
$120.33
)
- Minimum Purchase:
- 1 unit
- Size:
- 2"
- Size Dropdown:
- True
STC 2DSO500F- 2" Pilot, Solenoid Valve Technical Specs
Orifice
50mm
CV
30
Valve Type
2 Way
Action
Pilot Diaphragm
Uni-Directional
De Energized State
Normally Open (NO)
Body Material
Valve Body: 304 Stainless Steel
Seal: NBR (Buna N), Viton (FKM)
Upgrade Option: Viton (FKM)
Op Temp
Media with NBR Seal: 23°F to 176°F (-5°C to 80°C)
Media with Viton Seal: 23°F to 248°F (-5°C to 120°C)
Ambient: 23°F to 113°F (-5°C to 45°C)
Op Pressure
AC Coil: 6 PSI to 120 PSI
DC Coil: 6 PSI to 87 PSI
Elec. Connection
DIN 43650, Form A
Coil Power
AC Coil: 28VA
DC Coil: 13-20W
Voltage Options
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty)
Installation
No Orientation Requirement
Optimum Position: Flow Horizontal and Solenoid Vertical
Service
Liquid, Water, Air, Inert Gas
