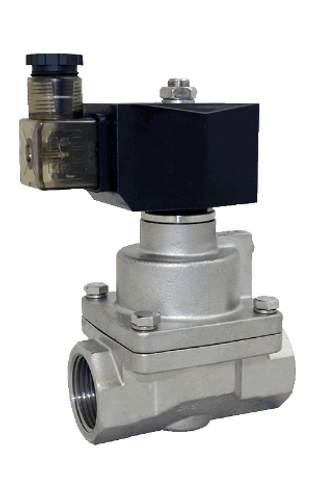

STC 2MS150- 1/2" Stainless Steel, Solenoid Valve 2-Way, Normally Closed, Pilot Piston for High Temp. & Pressure
Brand : STC Valve
MSRP: $189.15
Starting At:
$162.99
(You save
$26.16
)
- Minimum Purchase:
- 1 unit
- Size:
- 1/2"
- Size Dropdown:
- True
STC 2MS150- 1/2" Stainless Steel, Solenoid Valve Technical Specs
Orifice
15mm
CV
4.5
Valve Type
2 Way
Action
Pilot Piston
De Energized State
Normally Closed (NC)
Body Material
304 Stainless Steel
Op Temp
Media: -4°F to 356°F (-20°C to 180°C)
Ambient: -4°F to 130°F (-20°C to 55°C)
Standard Operating Pressure
6 PSI to 230 PSI
Medium Pressure Option (M)
AC Coil: 6 PSI to 725 PSI
DC Coil: 6 PSI to 580 PSI
High Pressure Option
87 PSI to 1450 PSI
Elec. Connection
D: DIN 43650, Form A (2W200C)
M: 3ft Molded Cable Wires
N: DIN with 1/2" NPT Circuit Conduit
*ATEX: Explosion Proof Coil (2W200C-ATEX) *Only Available in High-Pressure (H) Option
Coil Power
AC Coil: 22-28VA
DC Coil: 12-30W
Voltage Options
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty)
Installation
No Orientation Requirement
Service
Liquid, Air, Inert Gas, Steam, Vacuum
