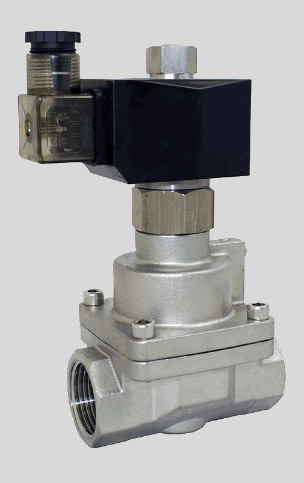

STC 2MS200- 3/4" Stainless Steel, Solenoid Valve 2-Way, Normally Open, Pilot Piston for High Temp. & Pressure
Brand : STC Valve
MSRP: $242.45
Starting At:
$207.99
(You save
$34.46
)
- Minimum Purchase:
- 1 unit
- Size:
- 3/4"
- Size Dropdown:
- True
STC 2MS200- 3/4" Stainless Steel, Solenoid Valve Technical Specs
Orifice
20mm
CV
7.6
Valve Type
2 Way
Action
Pilot Piston
De Energized State
Normally Closed (NC)
Body Material
304 Stainless Steel
Op Temp
Media: -4°F to 356°F (-20°C to 180°C)
Ambient: -4°F to 130°F (-20°C to 55°C)
OP Pressure
6 PSI to 230 PSI
Elec. Connection
AC Coil: 6 PSI to 725 PSI
DC Coil: 6 PSI to 580 PSI
87 PSI to 1450 PSI
Coil Power
D: DIN 43650, Form A (2W200C)
M: 3ft Molded Cable Wires
Voltage Options
N: DIN with 1/2" NPT Circuit Conduit
*ATEX: Explosion Proof Coil (2W200C-ATEX) *Only Available in High-Pressure (H) Option
AC Coil: 22-28VA
DC Coil: 12-30W
12VDC
Voltage Tolerance
24VDC
Ingress Protection
24VAC
Insulation Class
110/120VAC (50/60Hz)
Coil Duty
220/240VAC (50/60Hz
Installation
±10% of Specified Voltage
Service
IP65
