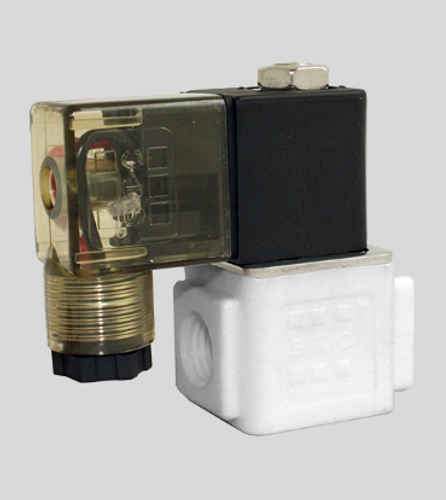

STC 2P025-A- 1/8" Solenoid Valve 2-Way, Normally Closed, Direct Acting

Brand :

MSRP: $29.08
Starting At: $24.99
(You save $4.09 )
Minimum Purchase:
1 unit

STC 2P025-A- 1/8" Solenoid Valve Technical Specs

Orifice
2.5mm
CV
0.23
Valve Type
2-Way
Action
Direct Acting (Poppet)

Fast Response Time: <20msec

22 SCFM at 100PSI
De Energized State
Normally Closed (NC)
Body Material
Valve Body: Engineered Ecetal Plastic (Delrin POM)

Armature Assembly: Stainless Steel

Upgrade Options: Explosion Proof Coil (200C-E) or ATEX Explosion Proof Coil (200C-ATEX)
Op Temp
Media: 14°F to 176°F (-10°C to 80°C)

Ambient: 14°F to 122°F (-10°C to 50°C)
Op Pressure
0 PSI to 150 PSI
Elec. Connection
D: DIN 43650A

G: Grommet
Coil Power
3W to 6.5W
Voltage Options
12VDC

24VDC

24VAC (50/60Hz)

110/120VAC (50/60Hz)

220/240VAC (50/60Hz)
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED, Continuous Duty
Installation
No Orientation Requirement

Optimum Position: Flow Horizontal and Solenoid Vertical
Service
Liquid, Water, Air
