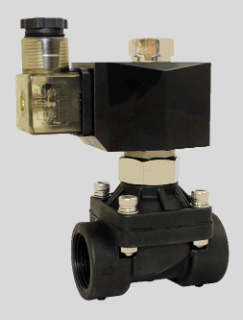

STC 2PO160- 1/2" Solenoid Valve 2-Way, Normally Open
Brand : STC Valve
MSRP: $88.00
Starting At:
$75.99
(You save
$12.01
)
- Minimum Purchase:
- 1 unit
- Size:
- 1/2"
- Size Dropdown:
- True
STC 2PO160- 1/2" Solenoid Valve Technical Specs
Orifice
16mm
CV
4.8
Valve Type
2 Way
Action
Direct Lift Diaphragm
Uni-Directional, Zero Differential
De Energized State
Normally Open (NO)
Body Material
Valve Body: Plastic Nylon (PA66)
Seal: NBR (Buna N), Viton (FKM), or EPDM
Armature Assembly: Stainless Steel
Upgrade Option: Viton (FKM), EPDM
Op Temp
Media: 23°F to 122°F (-5°C to 50°C)
Ambient: 23°F to 113°F (-5°C to 45°C)
OP Pressure
0 PSI to 90 PSI
Elec. Connection
DIN 43650, Form A
Coil Power
AC Coil: 28VA
DC Coil: 12-40W
Voltage Options
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty)
Installation
No Orientation Requirement
Service
Liquid, Water, Oil, Air, Inert Gas, Steam Vacuum
