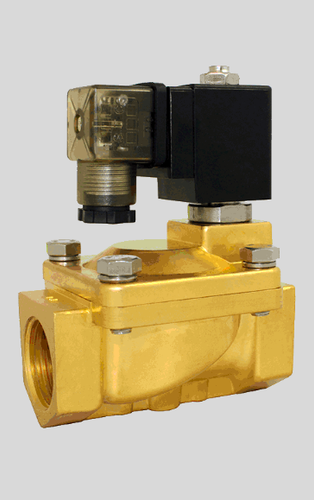

STC 2RO320- 1-1/4" Brass, Solenoid Valve 2-Way, Normally Open, Pilot-Operated Diaphragm
Brand : STC Valve
MSRP: $340.68
Starting At:
$292.99
(You save
$47.69
)
- Minimum Purchase:
- 1 unit
- Size:
- 1-1/4"
- Size Dropdown:
- True
STC 2RO320- 1-1/4" Brass, Solenoid Valve Technical Specs
Orifice
32mm
CV
22
Valve Type
2 Way
Action
Pilot Diaphragm
Uni-Directional
De Energized State
Normally Open (NO)
Body Material
Valve Body: Brass
Seal: NBR (Buna N), Viton (FKM), or EPDM
Armature Assembly: Stainless Steel
Upgrade Options: Viton (FKM), EPDM
Op Temp
Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)
Media with Viton Seal: 14°F to 266°F (-10°C to 130°C)
OP Pressure
Ambient: 23°F to 110°F (-5°C to 43°C)
Elec. Connection
4.5 PSI to 232 PSI
D: DIN 43650, Form A (2W200C)
Coil Power
ATEX: Explosion Proof Coil (2W200C-ATEX)
AC Coil: 28VA
Voltage Options
DC Coil: 12-20W
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
Voltage Tolerance
220/240VAC (50/60Hz
Ingress Protection
±10% of Specified Voltage
Insulation Class
IP65
Coil Duty
H Class
Installation
100% ED (Continuous Duty)
Service
No Orientation Requirement
