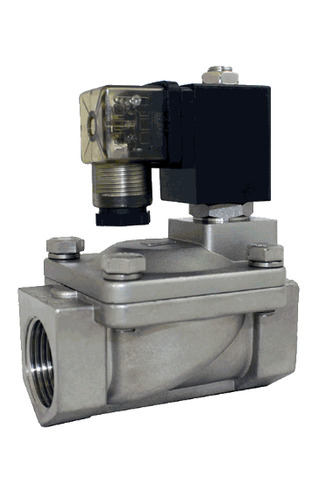

STC 2RS150- 1/2" NPT Solenoid Valve, 316 Stainless Steel Body, 2-Way, Normally Closed, Pilot-Operated Diaphragm
Brand : STC Valve
MSRP: $147.40
Starting At:
$126.99
(You save
$20.41
)
- SKU:
- 2RS150-1/2
- Minimum Purchase:
- 1 unit
- Size:
- 1/2"
- Size Dropdown:
- True
STC 2RS150- 1/2" Stainless Steel, Solenoid Valve Technical Specs
Orifice
15mm
CV
4.5
Valve Type
2 Way
Action
Pilot Diaphragm
Uni-Directional
De Energized State
Normally Closed (NC)
Body Material
Valve Body: 316 Stainless Steel
Seal: NBR (Buna N), Viton (FKM), or EPDM
Armature Assembly: Stainless Steel
Upgrade Options: Viton (FKM), EPDM
Op Temp
Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)
Media with Viton Seal: 14°F to 266°F (-10°C to 130°C)
Ambient: 23°F to 110°F (-5°C to 43°C)
Op Pressure NC Model
4.5 PSI to 232 PSI
Op Pressure NO Model
AC Coil: 4.5 PSI to 185 PSI
DC Coil: 4.5 PSI to 87 PSI
Elec. Connection
D: DIN 43650, Form A (2W200C)
ATEX: Explosion Proof Coil (2W200C-ATEX)
Coil Power
AC Coil: 28VA
DC Coil: 12-20W
Voltage Options
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty)
Installation
No Orientation Requirement
Service
Liquid, Water, Potable Water, Oil, Air, Gas
