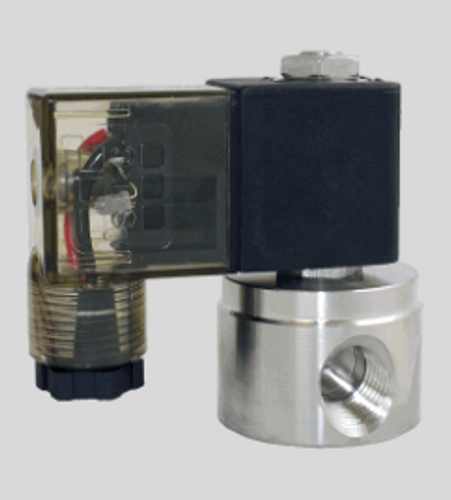

STC 2S012-A- 1/4" Stainless Steel, Solenoid Valve 2-Way, Normally Closed, Direct Acting
Brand : STC Valve
MSRP: $38.76
Starting At:
$33.99
(You save
$4.77
)
- Minimum Purchase:
- 1 unit
STC 2S012-A- 1/4" Stainless Steel, Solenoid Valve Technical Specs
Orifice
1.2mm
CV
0.05
Valve Type
2 Way
Action
Direct Acting (Poppet)
Fast Response Time: <20msec
De Energized State
Normally Closed (NC)
Body Material
Valve Body: Stainless Steel
Seal: NBR (Buna N), or Viton (FKM)
Armature Assembly: Stainless Steel
Op Temp
Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)
Media with Viton Seal: 5°F to 248°F (-15°C to 120°C)
Op Pressure
Vacuum to 200 PSI
Elec. Connection
D: DIN 43650, Form B
G: Grommet
E: Explosion Proof Coil (200C-E); 1/2" NPT Conduit Connection with 24in Three-Strand Wires
ATEX: Explosion Proof Coil (200C-ATEX); DIN43650B Connection with 10ft Three-Wired Cable and Sleeve
Coil Power
3-6.5W
Voltage Options
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty)
Installation
No Orientation Requirement
Optimum Position: Flow Horizontal and Solenoid Vertical
Service
Liquid, Water, Oil, Air
View Valve Specification Sheet Here
The STC 2S012-020 A Series is also available in the following sizes:
- STC 2S012-A- 1/8" Stainless Steel, Solenoid Valve 2-Way, Normally Closed, Direct Acting
- STC 2S012-A- 1/4" Stainless Steel, Solenoid Valve 2-Way, Normally Closed, Direct Acting
- STC 2S020-A- 1/8" Stainless Steel, Solenoid Valve 2-Way, Normally Closed, Direct Acting
- STC 2S020-A- 1/4" Stainless Steel, Solenoid Valve 2-Way, Normally Closed, Direct Acting
