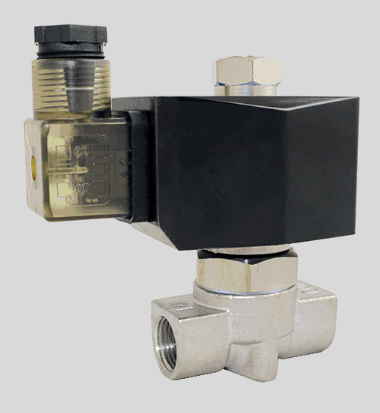

STC 2SO030- 1/4" NPT Solenoid Valve 2-Way, Normally Open

Brand : STC Valve

MSRP: $95.71
Starting At: $82.99
(You save $12.72 )
SKU:
2SO030-1/4
Minimum Purchase:
1 unit
Processing Time:
1 Days

STC 2SO030- 1/4" Solenoid Valve Technical Specs

Orifice
3.0mm
CV
0.3
Valve Type
2 Way
Action
Direct Acting

Fast Response Time: <20msec
De Energized State
Normally Open (NO)
Body Material
Valve Body: 304 Stainless Steel

Seal: NBR (Buna N), or Viton (FKM)

Armature Assembly: Stainless Steel

Upgrade Option: Viton (FKM)
Op Temp
Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)

Media with Viton Seal: 5°F to 248°F (-15°C to 120°C)
Op Pressure
Vacuum to 150 PSI
Elec. Connection
DIN 43650, Form A
Coil Power
20-30W
Voltage Options
12VDC

24VDC

24VAC

110/120VAC (50/60Hz)

220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty)
Installation
No Orientation Requirement

Optimum Position: Flow Horizontal and Solenoid Vertical
Service
Liquid, Water, Oil, Air, Vacuum


View Valve Specification Sheet Here

The STC 2SO030-040 Series is also available in the following sizes:
