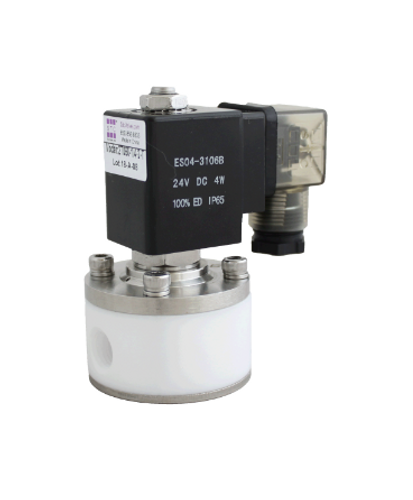

STC 2T060- 1/4" Solenoid Valve 2-Way, Normally Closed, Direct Acting, Isolated Diaphragm
Brand : STC Valve
MSRP: $145.44
Starting At:
$124.99
(You save
$20.45
)
- Minimum Purchase:
- 1 unit
- Size:
- 1/4"
- Size Dropdown:
- True
STC 2T060- 1/4" Solenoid Valve Technical Specs
Orifice
6.0mm ; Options: 2mm to 11mm
CV
2.8
Valve Type
2 Way
Action
Direct Acting
Uni-Directional Flow
Isolated Diaphragm
De Energized State
Normally Closed (NC)
Body Material
Valve Body: PTFE (Teflon)
Seal: Viton (FKM)
Op Temp
14°F to 266°F (-10°C to 130°C)
OP Pressure
Standard Option: Vacuum to 22 PSI
Upgrade Option: 0 PSI to 120 PSI
Elec. Connection
DIN 43650, Form A
Coil Power
20-30W
Voltage Options
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
25% Duty Cycle
Installation
If coil is to be energized for longer than 1hr at a time, we recommend installing a 2W200C-PS power save device.
Optimum Position: Flow Horizontal and Solenoid Vertical
Service
High Purity Fluid, Corrosive Fluid & Gas, Acid, Alkali, etc.
