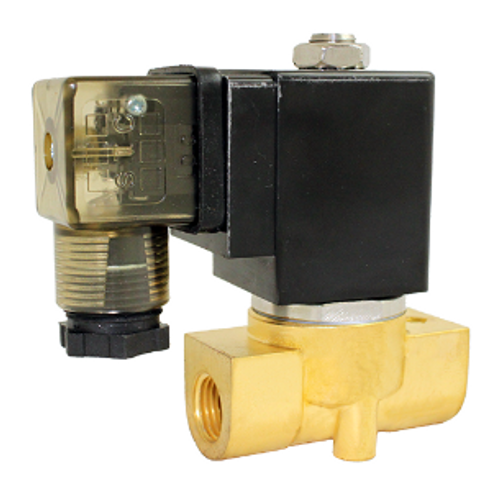

STC 2W040- 3/8" Brass, Solenoid Valve 2-Way, Normally Closed

Brand : STC Valve

MSRP: $46.64
Starting At: $39.99
(You save $6.65 )
Minimum Purchase:
1 unit
STC 2W040- 3/8" Brass, Solenoid Valve 2-Way, Normally Closed

Price

Price

Price

Price

View Details

STC 2W040- 3/8" Brass, Solenoid Valve Technical Specs

Orifice
4.0mm
CV
0.6
Valve Type
2 Way
Action
Direct Acting (Poppet)

Fast Response Time: <20msec
De Energized State
Normally Closed (NC)
Body Material
Valve Body: Brass

Seal: NBR (Buna N), Viton (FKM), or EPDM

Armature Assembly: Stainless Steel
Op Temp
Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)

Media with Viton Seal: 5°F to 248°F (-15°C to 120°C)
OP Pressure
Vacuum to 150 PS
Elec. Connection
DIN 43650, Form A
Coil Power
12-30W
Voltage Options
12VDC

24VDC

24VAC

110/120VAC (50/60Hz)

220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED ( Continuous Duty)
Installation
No Orientation Requirement

Optimum Position: Flow Horizontal and Solenoid Vertical
Service
Liquid, Water, Oil, Air, Gas, Vacuum, Steam (with Viton)


View Valve Specification Sheet Here

The STC 2W040 Series is also available in the following sizes:
