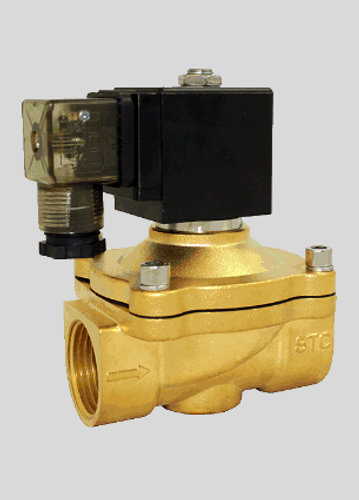

STC 2W200- 3/4" Solenoid Valve 2-Way, Normally Closed, Direct Lift Diaphragm
Brand : STC Valve
MSRP: $94.66
Starting At:
$81.99
(You save
$12.67
)
- Minimum Purchase:
- 1 unit
- Size:
- 3/4"
- Size Dropdown:
- True
STC 2W200- 3/4" Solenoid Valve Technical Specs
Orifice
20mm
CV
7.6
Valve Type
2 Way
Action
Direct Lift Diaphragm
Uni-Directional
De Energized State
Normally Closed (NC)
Body Material
Valve Body: Brass
Seal: NBR (Buna N), Viton (FKM), or EPDM
Armature Assembly: Stainless Steel
Upgrade Options: Viton (FKM), EPDM
Op Temp
Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)
Media with Viton Seal: 5°F to 248°F (-15°C to 120°C)
Ambient: 23°F to 113°F (-5°C to 45°C)
Op Pressure
AC Coil: Vacuum* to 150 PSI
DC Coil: Vacuum* to 100 PS
*larger than 29 inHg
Elec. Connection
D: DIN 43650, Form A (2W200C/2WO250C)
ATEX: ATEX Explosion Proof Coil (2W200C-ATEX)
Coil Power
Square Coil (2W200C)
AC Coil: 28VA
DC Coil: 30W
Voltage Options
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty), 20ms Response Time
Installation
No Orientation Requirement
Optimum Position: Flow Horizontal and Solenoid Vertical
Service
Liquid, Water, Oil, Air, Gas, Inert Gas, Vacuum
