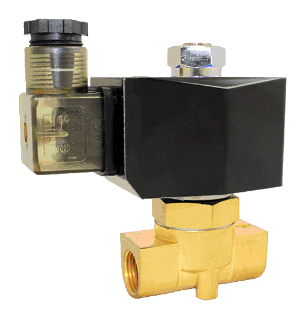

STC 2WO040- 3/8" Solenoid Valve 2-Way, Normally Open
Brand : STC Valve
MSRP: $77.56
Starting At:
$66.99
(You save
$10.57
)
- Minimum Purchase:
- 1 unit
STC 2WO040- 3/8" Solenoid Valve Technical Specs
Orifice
4.0mm
CV
0.6
Valve Type
2 Way
Action
Direct Acting
Fast Response Time: <20msec
De Energized State
Normally Open (NO)
Body Material
Valve Body: Brass
Seal: NBR (Buna N), or Viton (FKM
Armature Assembly: Stainless Steel
Upgrade Options: Viton (FKM)
Op Temp
Media with NBR Seal: 15°F to 176°F (-10°C to 80°C)
Media with Viton Seal: 5°F to 248°F (-15°C to 120°C)
Op Pressure
Vacuum to 60 PSI
Elec. Connection
DIN 43650, Form A
Coil Power
12-30W
Voltage Options
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED ( Continuous Duty)
Installation
No Orientation Requirement
Optimum Position: Flow Horizontal and Solenoid Vertical
Service
Liquid, Water, Oil, Air, Gas, Vacuum, Steam (with Viton
