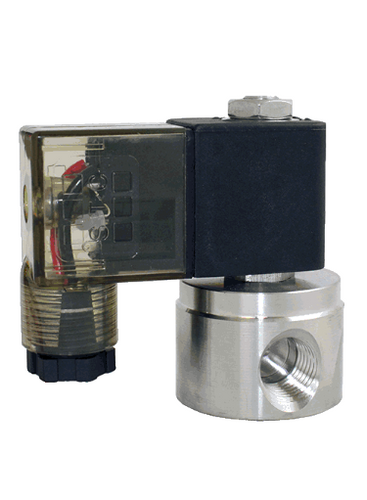

STC 3S012-A- 1/4" Solenoid Diverter 3-Way Universal, Normally Closed (NC) or Normally Open (NO) Direct Acting

Brand :

MSRP: $42.66
Starting At: $36.99
(You save $5.67 )
Minimum Purchase:
2 units

STC 3S012-A- 1/4" Solenoid Diverter Technical Specs

Orifice
1.2mm
CV
0.05
Valve Type
3 Way
Action
Direct Acting

Fast Response Time: <20msec
De Energized State
Normally Closed (NC) or Normally Open (NO)
Body Material
Valve Body: 316 Stainless Steel

Seal: NBR (Buna N), or Viton (FKM)

Armature Assembly: Stainless Steel
Op Temp
`Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)

Media with Viton Seal: 5°F to 248°F (-15°C to 120°C)
Op Pressure
Normally Closed: Vacuum to 60 PSI

Diverter/Selector & Normally Open: Vacuum to 150 PSI
Elec. Connection
D: DIN

G: Grommet

E: Explosion Proof Coil (200C-E); 1/2” NPT Conduit Connection with 24i

ATEX: Explosion Proof Coil (200C-ATEX); DIN43650B Connection with 10ft Three-Wired Cable and Sleeve
Coil Power
3-6.5W
Voltage Options
12VDC

24VDC

24VAC

110/120VAC (50/60Hz)

220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty)
Installation
No Orientation Requirement

Optimum Position: Flow Horizontal and Solenoid Vertical
Service
Liquid, Water, Oil, Air, Inert Gas
