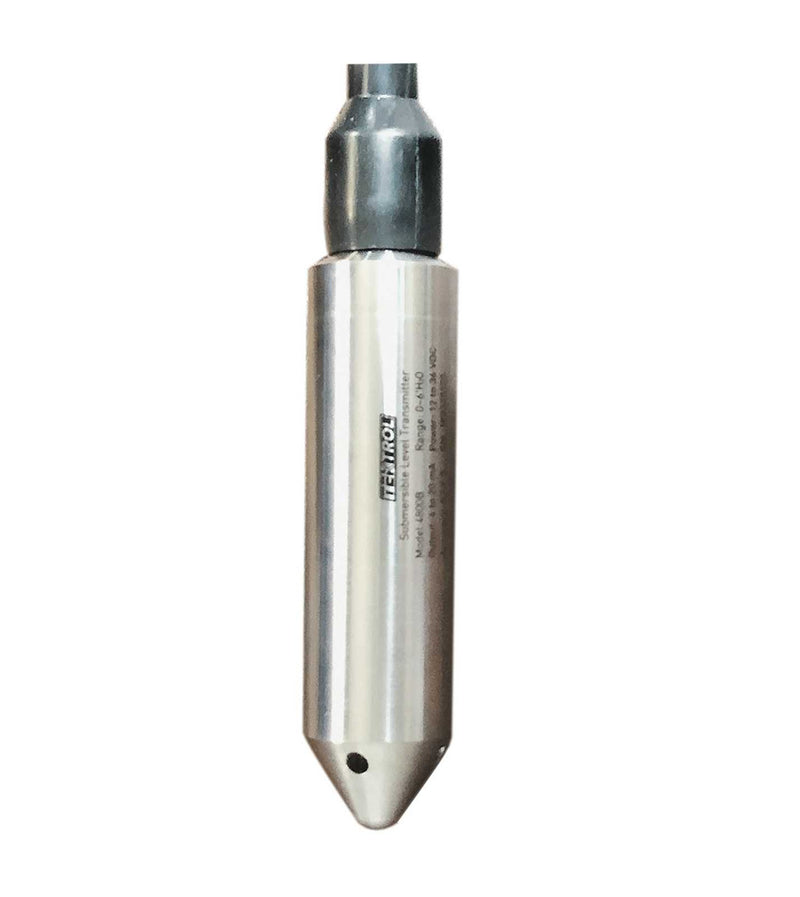

Tek-Trol Tek-Sub 4800B-05-42-05-P14 Clean Liquid Submersible Transmitter, -5 psig

Brand :

MSRP: $619.67
Starting At: $540.00
(You save $79.67 )
Size:
5"
Size Dropdown:
True

Tek-Sub 4800B-05-42-05-P14 -Clean Liquid Submersible Transmitter

Features

  • Standard submersible model
  • Piezoresistive pressure sensor in Stainless Steel housing
  • Excellent performance in challenging environment
  • Temperature Compensated
  • Vented to atmosphere for pressure reference
  • Measuring pressure ranges from 5 psig to 20 psig
  • Accuracy ±0.5% F.S.

Technical Specifications

Item
Clean Liquid Submersible Transmitter
Pressure Range
5 psig
Housing
304 SS
Cable
40 Feet Poly Cable
Cable Material
PTFE or Polyurethane
Seal Ring
Viton
Oil Filling
Sillicone Oil
Pressure Type
Gauge (vented)


Discover more about the Tek Trol, Tek-Sub 4800B Series Clean Liquid Submersible Level Transmitter

Documents

Approvals
