Deionized water destroys ordinary brass valves from the wetted side out. Strip the ions from water and it becomes a hungry solvent that pulls replacement ions off every metal surface it touches. A brass ball valve that would run for decades on city water will dezincify in DI service: the water leaches zinc out of the alloy and leaves behind a porous, weakened copper sponge. Long before the body cracks, the valve has been dumping zinc and copper ions into your high-purity stream, and your resistivity meter has been telling you about it.
Picking a deionized water valve comes down to two questions. Will the water attack the valve, and will the valve contaminate the water? This guide works through both, material by material and valve type by valve type, with the numbers you need to write a spec.
Why Deionized Water Destroys Ordinary Valves
Ultrapure DI water reaches 18.2 MΩ·cm resistivity at 25°C, which works out to a conductivity of about 0.055 µS/cm. That is as close to ion-free as water gets, and it is chemically unstable: the water wants its ions back and will take them from valve bodies, seats, and seals.
ASTM D1193 splits laboratory water into Types I through III, with Type I at the top for semiconductor rinse and analytical work and Types II and III covering progressively less demanding service. The purity tier your process requires should drive every valve decision downstream, and we'll come back to that.
One number trips up more troubleshooters than any other. Water at 18 MΩ·cm and about 75°F will read roughly about 4–5 MΩ·cm at 140°F and about 2 MΩ·cm at 175°F. The water is just as clean at 175°F; it self-ionizes more as it heats, so the meter reads lower. If your hot loop resistivity looks bad, check the temperature compensation on your instrument before you blame the valves.
Let's focus on contamination for a minute. Contamination from a bad valve shows up three ways:
- leached metal ions
- shed particles from degrading polymers or corroding surfaces
- microbial growth in stagnant pockets
A valve can pass a hydrotest perfectly and still be the dirtiest component in the loop.
DI Water Valve Materials: What Works and What Fails
So now let's dive into the types of materials that work well for DI water valves, starting with the ones you should never for DI water applications.
Never Use These
Ordinary brass and bronze are disqualified outright. Dezincification contaminates the stream with ions and eventually fails the valve structurally. Cast iron and carbon steel corrode as unprotected metals and shed iron into the water. These materials give fine service on municipal supply, and our guide to the best potable water valves covers where they belong. DI water is a different animal. If stainless is in the conversation at all, 316L is the minimum grade worth specifying; the lower-alloy grades give up corrosion resistance you cannot spare in ion-starved water.
PVDF (Kynar, Solef): The High-Purity Standard
PVDF conforming to ASTM D3222 is the default body material for high-purity water valves, and it earned the position. The resin contains no colorants or additives to leach into the stream, and it resists most strong acids and halogens, which matters when your DI loop shares a fab or plant with aggressive chemistry. PVDF beats the other fluoropolymers you might consider: it has greater strength, wear resistance, and creep resistance than PTFE, FEP, and PFA in terms of strength, wear, and creep. And PVDF has a melting point of roughly 350°F. PTFE makes a superb diaphragm or seat facing. It makes a poor pressure-retaining body, because it creeps under sustained load. PVDF holds its shape.
Our position after 60+ years of specifying valves: for any Type I loop, PVDF valves for DI water are the starting point, and you should need a specific reason to pick anything else.
Building a Type I loop and weighing PVDF against a cheaper body? Call a ValveMan engineer at 888-825-8800 — real engineers, not call centers — before you commit the spec.

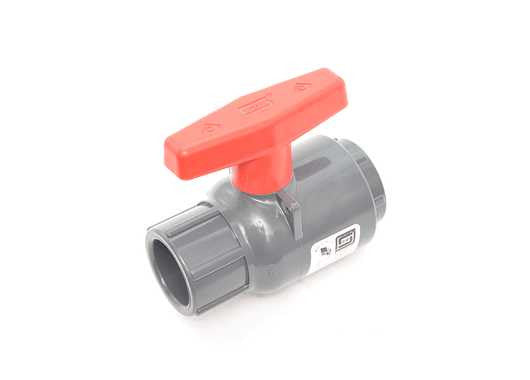

Polypropylene: Good Enough More Often Than You'd Think
Here's a fact that surprises buyers who assume ultrapure means exotic: 18.2 MΩ·cm water typically runs in polypropylene or PVDF piping. PP is chemically compatible with DI water and costs meaningfully less than PVDF. Its limits are thermal and mechanical. PP valves are an ambient-temperature product. Verify the manufacturer's pressure and temperature rating, because PP gives up capacity quickly as the line warms. For a Type II or Type III loop running near room temperature, a PP ball or diaphragm valve is the honest value pick.
PVC and CPVC: Know the Purity Ceiling
PVC and CPVC valves work in lower-purity utility DI, and they cost less than anything else on this page. Industry practice keeps them out of Type I loops. PVC compounds carry stabilizers and additives that the resin can give up to ultrapure water, and operators watching resistivity and TOC readings at the 18.2 MΩ·cm level do not specify them there. Match the material to the tier. A plating-shop rinse line on Type III water will never notice a PVC ball valve. A semiconductor rinse tool will.
316L Stainless: When Metal Still Wins
Stainless steel leaches metal ions into DI water at higher rates than thermoplastics do, and PVDF systems show lower detectable ion levels and less microbial fouling than 316L in high-purity service. The passive chromium-oxide layer that protects stainless degrades over time in DI exposure, and the steel leaches iron into the stream. Those are measured outcomes, and they are why the semiconductor industry runs plastic.
So why does 316L survive on spec sheets? Thermoplastic valves top out around 180°F and 150 psi. Hot DI loops, boiler feed trains, and sanitary steam-adjacent service run past both limits, and there a passivated or electropolished 316L valve is the correct answer. Specify the electropolished finish for purity-critical work and plan on periodic repassivation. Accept that the metal will contribute more iron to the water than PVDF ever would.
Hot loop beyond your thermoplastic valve's derated limit? Our team in Exton, PA can walk you through electropolished 316L versus thermoplastic for your temperature band — send us the details or call 888-825-8800.
Side-by-Side: PVDF vs PP vs PVC vs 316L for DI Valves
Here's a side-by-side of the materials we just discussed.
Match the body material to your purity tier and your temperature band first, then pick the valve type. Get those two right and the rest of the spec follows.
