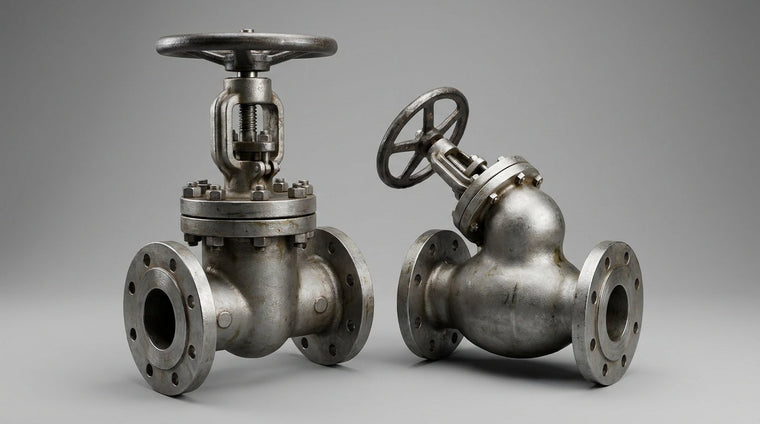

Gate valves isolate. Globe valves regulate. Every pipefitter learns that rule in the first year, and after 60+ years of helping engineers write valve specs from Exton, PA, we can tell you it holds up. Most comparison articles skip why it holds up. The two valves look similar from the outside: multi-turn handwheel, rising or non-rising stem, flanged or threaded body. Inside, they are built for different duties. This guide walks through the internals, the flow paths, the sealing behavior, and the applications, so you can put the right valve in the line the first time.
How Each Valve Works: Wedge vs Plug-and-Seat
A gate valve closes by sliding a flat or wedge-shaped disc straight down across the flow, the same way a knife drops through a cutting board. The disc comes in three common wedge forms: solid wedge for general service, flexible wedge for steam lines where thermal movement would bind a solid disc, and split wedge for self-aligning shutoff. Parallel slide gates use two discs riding against parallel seats instead of a tapered wedge. Whatever the disc style, the key trait holds. When the valve is fully open, the gate lifts completely up into the bonnet and leaves the bore clear.
A globe valve closes by pressing a plug or disc down onto a seat that sits horizontally in the body, perpendicular to the stem. Stem travel is short. Seat loading is direct and controllable, which is what you want when the valve has to hold a partial position for hours at a time. The disc can be a flat composition disc for tight shutoff on air and water, or a tapered plug for finer control.
Flow direction separates the two designs as well. A gate valve seals in either direction, which is one reason it dominates block-valve service. A globe valve has a defined inlet and outlet and the body carries a flow arrow for a reason. Install a globe valve backwards and the disc can chatter and the shutoff torque changes.
Both are multi-turn valves, and the slow closure that feels tedious on a big handwheel is what protects your piping from water hammer. A quarter-turn valve slammed shut on a long liquid line sends a pressure spike back through the system. A gate or globe valve closing over ten or twenty turns brings the flow down gently.
Flow Path and Pressure Drop
Open a gate valve fully and the fluid barely knows the valve is there. The flow space through the body is as large as the valve cavity itself, so resistance is minimal and pressure drop is close to what the same length of straight pipe would cost you. This is the gate valve's defining advantage, and it is why gate valves sit wide open on mains for years between operations.
A globe valve makes the fluid work. In the standard T-pattern body, flow enters horizontally, turns down under the seat, rises up through the seat opening, and turns again to exit. That Z-shaped path gives the globe valve its controllable seat geometry, and it also costs you head. The flow coefficient of a globe valve runs far below a gate valve of the same size, and since pressure drop climbs with the square of the flow for a given valve, that difference gets expensive fast at high flow rates.
The globe family offers two body patterns that soften the penalty. A Y-pattern globe sets the stem at an angle so the flow path is oblique instead of Z-shaped, and it recovers a large share of the head a T-pattern gives up. An angle-pattern globe turns the flow 90 degrees through the body, which lets it replace an elbow at a piping direction change and saves you a fitting plus its friction loss.
The practical consequence is simple. A globe valve parked wide open in a job a gate valve should be doing charges you a pumping penalty every hour the line runs. If the valve will only ever be fully open or fully closed, buy the gate valve. Save the globe pattern for lines where you genuinely need to set a flow.
Throttling vs Isolation: Why the Rule Exists
The isolate-versus-regulate rule comes straight from the geometry, and understanding it will keep you from repeating the most common valve mistake in industry.
A globe valve throttles well because the disc approaches the seat along the flow axis. Each turn of the handwheel changes the annular opening between disc and seat by a predictable amount, so the flow responds smoothly and repeatably across the full stem travel. Set it at 30 percent today, come back next week, and 30 percent still means the same flow. That behavior is why globe valves regulate steam, cooling water, and process flow in plants everywhere.
A gate valve behaves completely differently in mid-position. Its flow characteristic is highly non-linear, with most of the throttling effect crammed into roughly the final 20 percent of closure. For the first 80 percent of travel the flow barely changes, and then everything happens at once. Try to hold a mid-range flow with a gate valve and the control hunts, because the valve gives you almost no authority until you are nearly shut.
The damage mechanism is worse than the control problem. A partially closed gate forces the flow through a narrow opening, and the stream contracts to its tightest point just downstream of the gate, at the vena contracta. Local velocity spikes there and static pressure falls. In liquid service the pressure can drop below vapor pressure, vapor bubbles form, and they collapse violently against the seat and body wall. That collapse is cavitation, and it erodes metal with startling speed. The half-lifted disc hangs in the turbulent stream and vibrates against its guides, wearing both.
So the shop-floor rule stands on solid physics. Run a gate valve fully open or fully closed, and put a globe valve in any line that needs regulation. When manual globe throttling stops being precise enough, the next step up is an automated control valve, and our guide to control valve actuators and how to select them covers that transition.
What a Throttled Gate Valve Looks Like at Teardown
We have seen plenty of them come apart on a bench. The seat faces show wire drawing, the fine channeling cut by high-velocity fluid squeezing past a nearly closed disc. The body wall just downstream of the seat is pitted and scored where the cavitation bubbles collapsed. The disc guides show polished wear tracks from vibration. Once a gate valve looks like this inside, it will never again seal tight, and lapping rarely saves a wire-drawn gate seat.
Sealing, Trim, and Wear
Half the comparison pages on the internet say globe valves seal better, and the other half say gate valves do. Both camps skip the variable that decides the question: seat type. A resilient-seated gate valve, common in waterworks service, closes an encapsulated rubber wedge against the body and seals effectively. A metal-seated gate valve in good condition meets the seat-leakage acceptance criteria of API 598, the standard that governs shutoff testing for both valve types. A globe valve seals well too, and its higher seating force per unit of stem effort gives it an edge on tough shutoff duties like steam.
Where the globe valve clearly wins is maintainability. Pull the bonnet and the disc and seat sit right in front of you. Both can be lapped or replaced with the valve still welded or flanged into the line. A gate valve's seats are recessed down in the body, and refinishing them in place ranges from difficult to impractical depending on size and pattern.
Trim selection follows the service, and the same logic applies to both valve types. In our experience, 410 stainless trim handles general steam, water, and oil duty. Step up to 316 stainless when corrosion is the driver, Alloy 20 for acid service, and Stellite hard facing on seat and disc surfaces when the line carries high-temperature steam or erosive media. Sour oil and gas service brings NACE MR0175 material requirements into the spec on top of everything else.
One more wear note ties back to the throttling rule. A gate valve that has spent time in mid-position will leak on the seat test, because the cavitation damage is already done. Sealing quality on paper means nothing once the seat is scored.
Stem Types and Actuation: OS&Y, NRS, and Beyond
Stem configuration deserves a spot in your buying decision, and almost no comparison article gives it one.
On an OS&Y valve, short for outside screw and yoke, the stem rises out of the yoke as the valve opens. You can read the valve's position from across the room, and the stem threads stay outside the process fluid where you can grease them. NFPA 13 accepts OS&Y gate valves as indicating control valves in fire protection systems for exactly that visibility. If your gate valve controls a sprinkler main, OS&Y is the answer.
A non-rising stem (NRS) valve keeps the stem inside the body, with the threads engaging the disc down in the flow. Nothing protrudes as the valve opens, which makes NRS the right choice for buried water mains, valve boxes, and vaults where a rising stem has no headroom. The trade-off is that the stem threads run in the process fluid, so keep NRS valves out of scaling or erosive media that would chew up the thread engagement.
Both valve types climb the same actuation ladder. A handwheel covers most sizes. Large-diameter or high-class valves take a bevel gear operator to bring the rim pull down to something a human can manage. Electric multi-turn actuators handle remote or frequent operation on either type, and pneumatic actuation on a globe valve turns it into a proper modulating control device.
Standards Worth Knowing
The two valve types even carry separate API standards. API 600 is the long-standing specification for bolted-bonnet steel gate valves. API 623 covers steel globe valves from 2 to 24 inches in classes 150 through 2500, with wall thickness requirements that mirror API 600 and exceed the ASME B16.34 minimums. Many older globe specs still call out BS 1873, the British legacy standard. Beneath both sit the shared ASME building blocks: B16.34 for pressure-temperature ratings, B16.10 for face-to-face dimensions, and B16.5 for flanged ends. A B16.34-only globe valve and an API 623 globe valve are different valves at the wall, so match the standard callouts before you compare prices.
Applications: Where Each Valve Belongs
Gate valves earn their keep as block valves, and should be fully open or closed unless specifically approved for throttling service. You'll find gate valves isolating water, steam, and oil mains, on pump suction lines, standing guard as OS&Y valves on fire protection risers, and buried by the thousands as NRS valves in municipal distribution systems. Browse our gate valve collection to see the designs on our site.
Globe valves take the regulating jobs: boiler feedwater control, cooling water balancing, and bypass lines around larger isolation valves. When you need to set and hold a flow by hand, the globe valve is the tool for the line.
Gate vs Globe Valve FAQ
Can a gate valve be used for throttling? No. Run it fully open or fully closed. A gate valve gives you almost no flow authority until the last 20 percent of travel, so mid-position control hunts. Worse, the partially closed gate drives the flow through a narrow gap and triggers cavitation and wire drawing that scores the seat. Once that damage is done, the valve won't seal tight again.
Does a globe valve have a flow direction? Yes. A globe valve has a defined inlet and outlet, and the body carries a flow arrow. Install it backwards and the disc can chatter and the shutoff torque changes. A gate valve, by contrast, seals in either direction.
Why does a globe valve cause more pressure drop than a gate valve? The T-pattern globe body sends flow in, down under the seat, up through the seat opening, and out again. That Z-shaped path is what makes the valve controllable, and it costs you head. A gate valve leaves a clear bore when open, so its pressure drop is close to the same length of straight pipe. Y-pattern and angle-pattern globe bodies recover part of that penalty.
Which valve seals tighter? Seat type decides it, not the valve style. A resilient-seated gate valve seals well in water service, and a metal-seated gate valve in good condition meets API 598 shutoff criteria. A globe valve applies higher seating force per unit of stem effort, which gives it an edge on tough duties like steam. A gate valve that has been throttled will fail the seat test regardless.
When should I choose OS&Y over a non-rising stem? Use OS&Y when you need visible position indication and want the stem threads outside the process fluid, which is why NFPA 13 accepts OS&Y gate valves on fire protection systems. Use a non-rising stem where headroom is tight, such as buried mains and valve boxes, but keep NRS valves out of scaling or erosive media that would wear the internal threads.
If you're still weighing the two for a specific service, call us at 888-825-8800 or reach the team through our contact page. We'll walk the spec with you.
