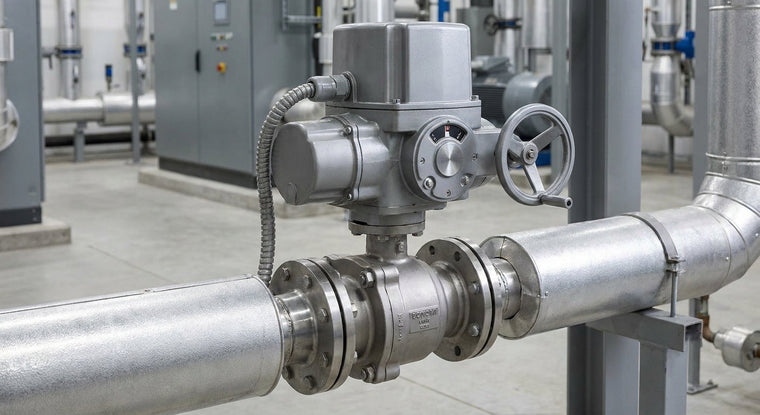

How Do Ball Valves Work?

Ball valves are found just about anywhere that you find a fluid system. In this article, we're taking a deep dive into ball valves, including how they work, what types there are, and when to choose one.

A  ball valve, as its name neatly suggests, is any valve that utilizes a ball to control the flow of substances from one opening to the next.  The center of the ball includes a port, sometimes called a bore.  The ball valve is in the open position when this central port is aligned in the same direction as the connected pipeline, which allows the fluid or gas to flow through.  The ball valve turns to the closed position when the port becomes perpendicular, blocking the flow path and preventing any substances from continuing to continue moving through.

While standard two-way ball valves utilize a 90-degree (quarter-turn) rotation to open and close, multi-port ball valves (such as 3-way or 4-way valves) can rotate up to 360 degrees to direct flow between different ports.  The 90-degree rotation is technically all that's required for the opening and closing of ball valves, but there are some applications where it's more desirable to have the full movement of the core.

The ball valve is a notable industrial choice thanks to its reliable and air-tight sealing when in the closed position.  This makes them particularly ideal for industries carrying potent chemicals or gases that require secure and rapid shutoff, such as with natural gas.  However, they shouldn't be used in intense throttling-like applications where constant wear on their seats could compromise their integrity.

Types of Ball Valves

There are three primary types of ball valves that are described by the ball's movement:

1. Trunnion Mounted Ball Valve - This type of ball valve includes an extra mechanical anchoring system at its top and bottom that makes it more suitable for use where there are higher pressures involved.  That's because the included trunnion-mounted stem absorbs extra thrust or pressure from the pipeline and prevents any excess friction that would otherwise impact operations and reduce working life.
2. Floating Ball Valve - Floating ball valves don't have the added steadying component of the trunnion and are instead connected only to the stem.  This gives floating ball valves their name, as this causes the ball to 'float' downstream of the flow so that it presses against the seat to create its own seal.
3.  Rising Stem Ball Valve - This genre of ball valves uses a tilt-and-turn process to reduce the opportunity for seal rubbing. Seal rubbing is one of the leading factors of premature valve failure.  When the valve is turned to the closed position, the core wedges against its seating for full shutoff.  When the valve is turned to the open position, the center core tilts away from the seal to allow the liquid or gas flow to pass uniformly across.

When to Choose a Ball Valve?

Ball valves enjoy massive popularity thanks to their compact and low-maintenance design that requires no lubrication while still offering users a tight seal with minimal torque. Ball valves are often a highly cost-effective choice for small-to-medium pipe diameters due to their long service life and minimal maintenance requirements.

The biggest disadvantage of ball valves is that most designs have poor throttling characteristics that can cause the seat of a ball valve to easily erode. This has been remedied somewhat with the trunnion-mounted ball valve design, but should still be a consideration for those looking at ball valves for situations where high throttling is a must.

Ball valves are also commonly chosen thanks to their ability to be successfully used across a range of applications and markets. As mentioned before, ball valves are a big hit with the oil and natural gas industry, but also find a place in many manufacturing sectors, chemical storage, and even residential uses.

Conclusion

If you need a ball valve, or advice on whether that's the best option for your design, contact the ValveMan experts today!
