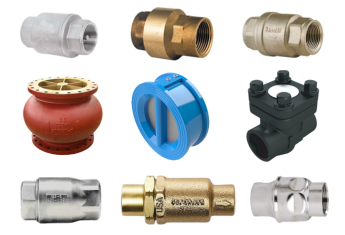

Top 10 Best Check Valves

From municipal water systems to cosmetics manufacturing, check valves are vital. To help you find the check valve for your design, ValveMan has curated this list of the top 10 check valves from manufacturers such as Bonomi, Titan, SVF, Chicago, Red-White, Jomar, Sanitary Solutions, and Plast-O-Matic. In this blog post, we’re going to talk about those top ten check valves, including their key features and examples of where they are most effectively used.

1. Bonomi S800 Series Inline Check Valves

The Bonomi S800 series of compact, spring-loaded silent check valves are engineered for use in tight spaces where a traditional swing-type valve simply won't fit. Its stainless steel body (CF8M, the cast equivalent of 316 Stainless Steel) handles temperatures from -10°F to 450°F with a low cracking pressure of ½ psi, making it ideal for water, air, gas, and chemical service. The PTFE seat provides a bubble-tight shutoff, and the all-stainless internals mean virtually no risk of corrosion. In addition, the Bonomi S800 series of inline check valves is 800 WOG-125 WSP rated and available in 1/4” to 2”.

There are several example applications for these valves, including:

• Chemical Dosing Systems — Both the CF8M body and the PTFE seat are resistant to aggressive fluids that would quickly degrade brass or standard iron check valves.
• Compressed Air Lines — The low ½ psi cracking pressure minimizes resistance, making these inline check valves efficient for pneumatic systems and compressor discharge lines.
• Steam and Hot Water Systems — Rated to 450°F and 125 WSP, the Bonomi S800 protects boilers and heat exchangers against reverse flow during system cycling down.
• Food and Beverage Processing — With its all-stainless internals and bubble-tight PTFE shutoff, these valves comply with the cleanliness demands of food-grade liquid lines.
• Tight-Space Installations — The compact inline footprint fits skid-mounted equipment and dense pipe runs where a swing check valve simply can’t.

2. Titan FCI CV 41-D1 Series Wafer Dual Disc Check Valves

The Titan FCI CV 41-D1 series is a wafer-type dual-disc check valve manufactured from ductile iron. What sets the Titan FCI CV 41-D1 series apart is its two spring-loaded half-moon discs, which snap shut almost instantly when the flow reverses. This closure significantly reduces water hammer when compared to single-disc designs. In addition, the wafer-style body fits between standard flanges without requiring extra pipe modifications, and ductile iron construction offers greater impact resistance than cast iron. These are a go-to choice for HVAC systems, water treatment plants, and industrial process piping where fast, reliable closure is most critical. These valves are available in sizes 2” to 14”, with a choice of BUNA-N, Viton, or EPDM seats and either stainless steel or aluminum bronze discs.

• HVAC Systems — The instant-closing dual discs prevent water hammer issues in chilled- and hot-water loops where pumps frequently cycle on and off.
• Water Treatment Plants — The ductile iron body and choice of BUNA-N, Viton, or EPDM seats allow these wafer check valves to handle the varying chemical conditions found across treatment and distribution systems.
• Pump Discharge Lines — The spring-loaded discs snap securely shut before reverse flow can build momentum, protecting pumps from damaging backflow surges.
• Industrial Process Piping — Available in 2" to 14" with stainless steel or aluminum bronze discs, the Titan FCI CV 41-D1 is adaptable to a wide range of fluid types and pipe sizes.
• Retrofit Installations — The wafer-style body slides between existing flanges with no extra pipe modifications required, which makes it an easy drop-in upgrade for aging single-disc valves.

3. SVF Flow Control CVC Wafer Check Valve

The SVF Flow Control CVC series of wafer check valves is manufactured with an epoxy-coated ductile iron body, providing outstanding corrosion resistance and making it particularly useful in water distribution and municipal applications. At 300 WOG, the SVF Flow Control CVC wafer check valves handle solid working pressures, and the center-guided disc design ensures consistent, low-pressure-drop performance. Its slim wafer profile means it installs between flanges in a fraction of the space a traditional check valve would require. Its spring-loaded double disc 6”, 8”, 10”, and 12” options are approved as chemigation valves, and it is available in 2” to 16” models.

Here are some common applications:

• Municipal Water Distribution — The epoxy-coated ductile iron body resists the corrosion that's common in long-running water mains and distribution infrastructure.
• Agricultural Chemigation — The spring-loaded double disc design in 6" to 12" sizes carries official chemigation approval, making it a code-compliant choice for chemical injection into irrigation systems.
• Pump Stations — The center-guided disc and low-pressure-drop design maintain high efficiency in pumping applications where energy costs make every psi count.
• Wastewater Systems — The robust ductile iron construction and corrosion-resistant epoxy coating withstand the harsh, chemically variable conditions encountered in wastewater treatment and conveyance.
• Tight Mechanical Rooms — Available up to 16", the slim wafer profile installs between existing flanges in crowded equipment rooms where a full-bodied check valve would simply not fit.

4. Chicago Valve Series P486 Piston Check Valve

The Chicago Valve P486 series is built for harsh environments. Because it’s forged from 316L stainless steel, it offers exceptional strength and corrosion resistance. Its Class 800 rating means it can handle extreme pressures up to 1,975 psi, which makes it one of the toughest piston check valves in its class. Furthermore, the piston design creates a linear, guided seal that outperforms swing-type valves in high-pressure steam, feedwater, and gas applications. The dashpot chamber above the piston also cushions the closing action, protecting the system from pressure spikes.

Here are some practical applications:

• High-Pressure Steam Lines — The Class 800 rating and forged 316L stainless body handle the extreme pressures and temperatures of industrial steam systems, where lesser valves would fail.
• Boiler Feedwater Systems — The guided piston seal prevents reverse flow from damaging feedwater pumps, and the dashpot chamber absorbs closing shock that would otherwise stress the system.
• Oil and Gas Pipelines — The 1,975 psi pressure rating and corrosion-resistant 316L construction make it a reliable choice for high-pressure hydrocarbon and gas transmission lines.
• Chemical Processing Plants — The stainless steel internals resist aggressive process fluids that would corrode standard carbon steel valves, even under demanding pressure conditions.
• Compressed Gas Systems — The linear piston action provides a tighter, more consistent seal than swing-type valves in high-pressure nitrogen, hydrogen, and other compressed gas applications.

5. Red-White Valve 884 Swing Check Valve

The Red-White 884 series of swing check valves is a no-frills, reliable line that earns its reputation through simplicity. A hinged stainless steel disc swings freely open with forward flow and closes under its own weight when flow stops. Because of its design, there are no springs to fatigue and no complex mechanisms to fail. Rated at 200 WOG and 200 WSP, the Red-White 884 series handles both water and steam service, and PTFE gaskets maintain a tight seal across a wide temperature range. It's the kind of valve maintenance teams love: straightforward to inspect, easy to understand, and long-lasting.

Here are some great examples of where it can be used:

• General Plumbing Systems — The simple hinged disc and 200 WOG rating make it a dependable, low-maintenance choice for standard water supply and distribution lines.
• Steam Service — Rated at 200 WSP with PTFE gaskets, it handles steam applications reliably without the added complexity of spring-loaded alternatives.
• HVAC Hydronic Systems — The no-spring design means fewer parts to wear out in continuously circulating hot- and chilled-water loops, keeping maintenance calls to a minimum.
• Light Industrial Processes — The stainless steel disc and PTFE gaskets resist corrosion in mild chemical and process-fluid lines, where a basic, proven check valve is all that's needed.
• Maintenance-Heavy Facilities — Its straightforward design makes inspection and servicing fast and intuitive, reducing downtime in plants and buildings where technician time is at a premium.

6. – Y-Pattern Swing Check Valve

The Y-pattern body design is what makes this Jomar Valve S-511 series special: the angled flow path reduces turbulence and pressure drop compared to a standard T-pattern or standard globe-style lift check valve while still providing solid backflow protection. Because the disc travel is shorter in a Y-body, it also closes faster than a traditional swing check, reducing the risk of water hammer. The dezincification-resistant bronze construction makes it well-suited for potable water systems, and the solder-end connections are a natural fit for copper plumbing installations. These Jomar Valve S-511 series swing check valve solutions are also MSS SP-80 and ASME/ANSI B16.18 certified.

Here are some great examples of where they are used:

• Residential Plumbing — The dezincification-resistant bronze body and solder-end connections are a natural fit for copper pipe installations in homes and apartment buildings.
• Potable Water Systems — The DZR bronze construction meets the material standards required for drinking water lines where leaching from standard brass would be a concern.
• Low-Flow Domestic Systems — The Y-pattern's reduced pressure drop maintains strong flow rates in lower-pressure residential and light-commercial water systems where every psi matters.
• Recirculating Hot Water Lines — The shorter disc travel means faster closure than a traditional swing check, protecting recirculation pumps from reverse flow when they cycle down.
• Commercial Plumbing Retrofits — The solder-end connections make it a straightforward drop-in replacement in existing copper pipe systems without the need for additional fittings or adapters.

7. Sanitary Solutions SS45CV Clamp Check Valve

The SS45CV line of spring-loaded clamp check valves is specifically engineered for sanitary environments (e.g., food processing, dairy, beverage, and pharmaceutical lines) where hygiene and cleanability are non-negotiable. The T316L stainless steel body is smooth, crevice-free, and compatible with CIP (clean-in-place) cleaning protocols. The spring-loaded design ensures positive, reliable closure in any orientation, including vertical lines where gravity-dependent valves fall short. The clamp-style connection used in the SS45CV series makes disassembly for inspection or replacement fast, which is critical in regulated industries.

Here are some common uses for these clamp check valves:

• Dairy Processing Lines — The crevice-free T316L body and CIP compatibility prevent bacterial buildup in milk, cream, and cheese production lines where hygiene standards are strictly regulated.
• Beverage Manufacturing — The smooth stainless-steel interior and clamp-style connections allow fast disassembly for cleaning and inspection between production runs in breweries, wineries, and soft-drink facilities.
• Pharmaceutical Production — Meets the cleanability and material standards required in drug manufacturing environments where even trace contamination from backflow can compromise an entire batch.
• Food Processing Plants — The spring-loaded closure works reliably in any pipe orientation, making it suitable for the complex, multi-directional pipe runs common in large food production facilities.
• Cosmetics and Personal Care Manufacturing — The T316L construction resists acids, alcohols, and surfactants found in personal care product lines, while the clamp connection enables the frequent cleaning cycles these facilities require.

8. Sanitary Solutions SSYBCV Y-Ball Clamp Check Valve

The Sanitary Solutions SSYBCV Y-Ball Clamp Check Valve and Teflon Ball has a T316L stainless steel body, a Teflon ball, and a EPDM gasket. When liquid flows in the correct direction, the ball within this valve lifts up and completely out of the main line into the Y-branch. This allows for a 100% full, unobstructed flow of the media. When the flow stops or slows down, gravity and media pressure return the ball to the smallest area of the main run to prevent reverse flow. Because it does not rely on complex internal springs or flow plates, there are fewer moving components to trap material. In addition, this particular line of Sanitary Solutions y-ball clamp check valves are available in 2”, 3”, and 4” sizes , which supports large-scale operations.

Here are some common uses of this Sanitary Solutions y-ball clamp check valve:

• Dairy, Food, and Beverage Production: Used to control the single-direction flow of raw and finished liquids while meeting strict 3-A hygienic standards.
• Clean-in-Place (CIP) Systems: Because the ball lifts completely out of the main line, it creates zero obstruction. This makes it ideal for CIP lines, allowing high-velocity cleaning solutions to flush through the system at maximum flow rates.
• Product Recovery & Line Evacuation: Frequently paired with Air Blow Check Valves. When a product batch finishes, pressurized air is used to push the remaining liquid out of the lines and into storage tanks without any risk of it flowing backward.
• Pump Discharge Protection: Installed immediately after a pump to prevent fluid from surging backward when the pump shuts off, protecting the pump's internal components from damage and back-pressure.
• Personal Care & Chemical Processing: Utilized in lines that transfer low-viscosity cosmetics (like mouthwash, shampoo, and liquid soaps) as well as on chemical storage tanks to prevent hazardous back-siphoning into clean water supplies.

9. Apollo 61LF-101-01 In-Line Ball Cone Check Valve

Ball cone check valves are celebrated for having the lowest pressure drop of any check valve design, and the Apollo 61LF-101-01 series lives up to that reputation. A free-floating RPTFE ball (reinforced Teflon) rolls out of the flow path with minimal resistance and seats firmly to block any reversal — with no hinge, no pivot, and no wear-prone moving parts beyond the ball itself. The lead-free bronze body meets NSF/ANSI standards for potable water, and the AISI 316 stainless steel spring ensures reliable cracking at just ½ psi. The Apollo 61LF-101-01 series of ball cone check valves is a favorite for pump discharge lines, pool systems, and anywhere flow efficiency is a priority.

Here are some of its applications:

• Potable Water Systems — The lead-free bronze body and NSF/ANSI compliance make it a code-approved choice for drinking water lines where material standards are strictly enforced.
• Pool and Spa Systems — The low ½ psi cracking pressure and minimal pressure drop keep circulation pumps running efficiently. At the same time, the RPTFE ball resists chlorine and other chemicals common in pool water.
• Pump Discharge Lines — The simple, wear-resistant ball mechanism reliably blocks reverse flow when pumps shut down, with fewer moving parts to fail than hinge or pivot-based alternatives.
• Low-Pressure Flow Systems — The ½ psi cracking pressure means it opens with almost no resistance, making it one of the few check valves suitable for gravity-fed and very low-pressure applications.
• Chemical Processing Lines — The reinforced Teflon ball and stainless steel spring resist a wide range of process chemicals, providing reliable backflow protection without corrosion-related maintenance issues.

10. Bonomi 100102 – Foot Valve, Brass, FNPT Threaded

The Bonomi 100102 family of foot valves is a spring-loaded foot valve with a built-in strainer screen comprising a combination that does two jobs at once. Installed at the bottom of a pump's suction line, it keeps the pump primed by trapping water in the line when the pump shuts off, eliminating costly and damaging dry starts that occur without one. The integrated strainer prevents debris from entering and damaging the pump impeller, while the brass body withstands freshwater, light chemicals, and general-purpose fluids. It's an essential component in well systems, irrigation setups, and industrial sump applications. The Bonomi 100102 foot valves are available in sizes ranging from ⅜” to 4”

Here are some potential applications for these Bonomi foot valves:

• Residential Well Systems — Keeps the suction line primed between pump cycles to avoid dry starts that quickly burn out jet pump and submersible motors.
• Agricultural Irrigation — The built-in strainer screens out sand, grit, and debris common in pond and canal water sources, protecting pump impellers from wear that can lead to premature failure.
• Industrial Sump Pumping — The spring-loaded closure ensures the suction line stays full when the pump shuts down, which eliminates the need to manually reprime.
• Water Transfer Operations — The brass body handles the freshwater and and non-corrosive fluid exposure typical of portable transfer pump setups, holding up through the frequent moves and varied conditions these systems encounter.
• Fire Suppression Systems — Maintains a primed suction line in dedicated fire pump installations to ensure immediate water availability upon the pump callout.

Conclusion

Check valves are indispensable across a wide range of industries and sectors. The ten valves discussed here are only a sampling of the valves, not to mention manufacturers, that we carry in stock and ready for fast shipping. In fact, if you need a valve that we don’t have, we’ll find it for you! Contact ValveMan today for all your valve needs, whether it's an in-line check valve for chemical dosing or a ball cone check valve for potable water.
