Every butterfly valve order forces one early decision: wafer or lug (or even double-flanged, but that's a topic for another day!). Wafer and lug butterfly valves share the same disc, the same seat, and the same quarter-turn stem. However, they behave very differently the day a crew needs to open the line on one side of the valve. Spec the wrong one and you'll drain an entire chilled water loop to swap a coil, or worse, you'll put a wafer valve at end-of-line and gamble on whether a seat blows out. Read on to learn how to choose the right valve for your application.
Butterfly Valve Basics: One Valve, Different Body Styles
A butterfly valve is a rotary motion, quarter-turn valve used to quickly isolate fluid flow in a pipeline. The disc rotates 90 degrees between open and closed positions within the valve body, sealing against a resilient (soft) or metal seat. While double-flanged, tri-clamp and buttweld ends are available, wafer and lug versions are the most common body types for general applications. Wafer and lug butterfly valves house identical valve internals, but they differ in how each valve body meets the adjoining pipe flanges.
A wafer body gets clamped between two flanges. Long through-studs pass from one flange to the other, outside the body or through alignment holes cast into it, and the bolt load squeezes the valve like a sandwich. A lug body has threaded lugs cast along its perimeter. Each lug aligns with flange holes, allowing each flange to bolt to the valve independently with its own set of short cap screws, which means that the upstream and downstream connections stand alone.
Typical construction for both styles in general service is a soft seated butterfly valve, comprising a ductile iron body with a 316 stainless steel disc and stem, and an EPDM, Buna-N, or FKM seat. Resilient-seated valves in 2 to 12 inch sizes commonly carry a 200 to 250 psi cold working pressure (CWP) rating.
Wafer Butterfly Valves: Where They Win
Wafer butterfly valves are the budget option. The body carries less metal, the price is lower, and the bill is shorter because one set of through-studs serves both flanges. For a valve that lives mid-line in a system that only ever gets drained as a whole, wafer is the right answer, as the extra money for lugs buys you nothing.
A lug body carries the added metal of the drilled-and-tapped lugs around the valve perimeter, so the same-size, same-brand, corresponding model lug valve outweighs its wafer sibling. A wafer butterfly valve is one of the lightest and most compact in-line valves you can put on a line.
The natural home for wafer bodies is HVAC hydronic work: chilled water loops, condenser water, and general utility water where nobody ever unbolts one side of the valve. Browse our wafer butterfly valve collection and you'll see the same trim pattern.
The following limitation matters more than the price advantage. A wafer valve seals because two bolted flanges compress the seat faces from either side. Remove the downstream flange and that compression disappears, and the seat can blow out of the body under line pressure. A wafer valve at end-of-line is a safety risk, full stop. Treat this as a disqualifier during selection, not a caution to manage later.

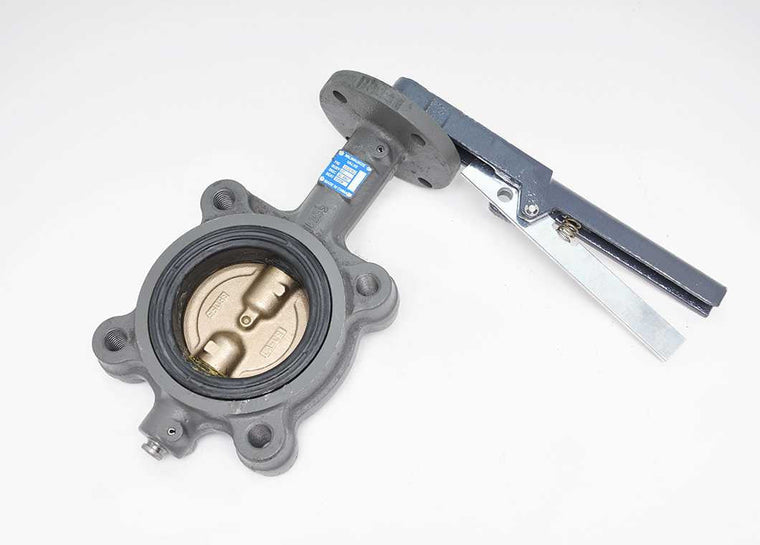

Lug Butterfly Valves: Dead-End Service and Single-Side Isolation
The lug butterfly valve design earns its premium in one scenario; it allows you to open the pipe on one side of a closed valve. Because each flange bolts to the body independently, a crew can unbolt and remove the downstream piping while the valve stays mounted and bolted to the upstream flange. Pump swaps, strainer cleanouts, and coil replacements all become much simpler when the isolation valve can hold pressure with half the pipework missing.
Read the dead-end rating before you rely on a lug butterfly valve for dead-end service. A lug valve rated 150 psi between two flanges may carry only about 75 psi in dead-end service. Some valves rated 200 psi inline carry a 50 psi dead-end rating, a quarter of the inline number. The dead-end derating varies from brand to brand, so the only safe move is to find the dead-end line item on the datasheet and quote that figure. Assuming "half the inline rating" may prove to be a costly mistake.
The physics behind the derating is straightforward. With both flanges bolted up, the seat is captured and compressed from two directions. In dead-end service, the body and a single bolt set retain the seat alone, and the exposed face sees full line pressure with nothing backing it.
When you need the full inline rating at a true end-of-line position, bolt a blind flange to the free face of the lug valve. The blind flange restores compression on the open side of the valve, and brings the assembly back to its in-line pressure rating. Almost no one writing about this comparison mentions the blind-flange move, and it's the simplest answer for tank discharge nozzles and future tie-in points.
Spec lug butterfly valve bodies for pump isolation, chemical and petrochemical lines, tank discharge, and any service where maintenance crews break the line downstream. The lug butterfly valves in our catalog cover these applications across a range of seat and trim options.
Worked Example: 6-Inch Class 150 Chilled Water Isolation Valve
You've been tasked with specifying the isolation valve at an air handler: a 6-inch line, 125 psi system pressure, chilled water with glycol, bolted to ASME Class 150 pattern flanges. Both body styles handle the pressure with room to spare, since resilient-seated valves in this size run 200 to 250 psi CWP. The decision comes down to bolting and maintenance.
Count the hardware first. The wafer version takes 8 long through-studs with 16 nuts, and every stud spans both flanges plus the valve body. The lug version takes 16 short cap screws, 8 threaded into each face of the valve. More fasteners, shorter ones, and each flange connection stands on its own.
Now play out a coil replacement three years from now. With the wafer valve, the crew unbolts the full stud set, spreads both flanges, and loses all compression on the seat, which means the loop upstream has to be drained or isolated somewhere else. With the lug valve, the crew backs out the 8 downstream cap screws, drops the downstream spool, and the valve keeps holding on the upstream flange at its dead-end rating. One side of the mechanical room stays wet and working while the other gets serviced.
Check the seat against the media. EPDM is the right call for water and glycol service and it's the standard seat for hydronic work. Buna-N suits oils and fuels. FKM, sold under the Viton name, handles hydrocarbons, acids, and higher service temperatures than either of the others. For this chilled water application, EPDM wins on both compatibility and price.
Our recommendation on this one: the valve exists to isolate the air handler, so spec the lug body and accept the price difference. If the same valve sat mid-loop in a line that always drains as a whole, we'd flip the answer and recommend the wafer.
Standards and Pressure Ratings US Buyers Actually Use
API 609 is the governing standard for butterfly valves, and it splits into two categories worth knowing. Category A covers CWP-rated concentric resilient-seated valves, in sizes NPS 2 through 60, with ASME Class 125/150 bolt patterns. Category B covers offset (double or triple eccentric) high-performance valves built to Class 150, 300, and 600 for higher pressures and temperatures. The general purpose ductile iron valves in this comparison belong in Category A. When the service climbs past what a resilient seat tolerates, reach for a Category B high-performance valve rather than a thicker Category A body. MSS SP-67 and 68 are the butterfly valve construction and testing standards you'll see cited on the datasheets.
Overseas manufacturer pages quote ratings in PN classes and MPa, which stalls a US spec review. The translation is simple arithmetic: 1.0 MPa equals 145 psi, and a PN16 rating means 16 bar, roughly 232 psi. Convert everything to psi CWP and confirm the bolt pattern in ASME B16.5 Class 125/150 terms before you compare valves, because a rating that looks generous in MPa can land below your system pressure once converted.
Note the following for retrofits. Wafer and lug bodies from the same product family usually share face-to-face dimensions and mate with the same flange pattern, so a lug valve can typically replace a wafer valve in an existing flange set. Budget for new bolt sets when you do it, since the long through-studs come out and two sets of short cap screws go in.
The Third Option Nobody Mentions: Sanitary Tri-Clamp Butterfly Valves
Food, beverage, pharmaceutical, and cosmetic lines skip the wafer-versus-lug question entirely. Sanitary butterfly valves use tri-clamp ends in 304 or 316L stainless steel, so there are no flanges, no studs, and no gasket faces that trap product. Pressure capability runs to about 145 psi, below most resilient-seated flanged valves, and the seats are FDA-compliant EPDM, silicone, or FKM.
The design priority is cleanability. Tri-clamp connections come apart in seconds for clean-in-place and inspection, and the whole valve disassembles without needing a bench full of tools. If the line carries anything a person will eat, drink, or inject, consider sanitary construction standards first, and let the wafer vs lug comparison stay in the utility room where it belongs.
Operators and Actuation: Lever, Gear, Pneumatic, Electric
Body style and operator choice are independent decisions. Wafer and lug valves from the resilient-seated families both carry an ISO 5211 mounting pad on top of the body, so the same lever, gear operator, or actuator can connect to either one. Pick the body for the piping duty first, then size the operator for seat torque.
Levers suit manual valves in the 2 to 6 inch range. At 8 inches and up, seat torque outruns what a person can comfortably deliver through a lever, so move to a gear operator. For automated service, pneumatic rack-and-pinion and electric quarter-turn actuators mount straight to the ISO 5211 pad, and the pattern standardization means that an actuator sized for the torque will fit either body style without adapter plates.
Selection Checklist and Where to Get Spec Help
Run every butterfly valve spec through five questions before you buy.
Will this valve ever see dead-end or single-side service? A yes means lug, checked against the published dead-end rating, with a blind flange typically required if you need the full inline pressure capability.
What's the media? Match the seat: EPDM for water and glycol, Buna-N for oils and fuels, FKM for most hydrocarbons and acids.
What's the pressure? Compare system pressure to the CWP rating in psi, and to the dead-end rating if question one was a yes.
What size and operator? Levers work through 6 inches, and gears or actuators take over at 8 and above via the ISO 5211 pad.
Is this a retrofit? Confirm face-to-face against the existing gap and plan the hardware swap from through-studs to cap screws.
The verdict is plain. Wafer is cheaper to buy and lighter to hang, and it's the correct choice for mid-line duty in systems that drain whole. Lug costs more up front and pays the difference back the first time a crew drops a downstream spool without shutting down the rest of the system.
If your application has a wrinkle, whether that's a glycol percentage you're unsure about, a dead-end rating that reads low, a retrofit with odd flange spacing, then call us. The ValveMan team in Exton, PA has been specifying valves since 1965, and we'd rather spend ten minutes on the phone than see the wrong body style go in your line. Reach us at 888-825-8800 or contact our team with the line size, pressure, media, and duty, and we'll help you pin down the ideal valve spec for your application.
