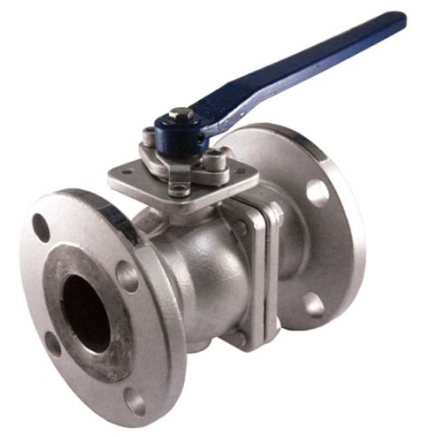

1-1/2" Jomar Valve FL-CS-100-150, 2 Piece, Full Port, Carbon Steel, Flanged, Stainless Steel Ball & Stem, Class 150 Ball Valve
Brand : Jomar Valve
MSRP: $472.21
$337.99
(You save
$134.22
)
- SKU:
- 600-207
- Size:
- 1-1/2"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
1-1/2" Jomar Valve FL-CS-100-150, 2 Piece Ball Valve Technical Specs
Features
- Raised Face Flange
- Wrench Operator
- Locking Device Comes Standard
- Fire Safe Stem and Body Graphite Seals
- Air Tested Seat Leakage: 85 PSI
- Hydraulic Tested Body: 427 PSI
- 100% Leak Tested
- Wetted Surfaces Contain Less than .25% Lead Content
- Repair Kits Available
Certifications/Approvals
- UL Listed (1/2" to 8")
- MHKZ Manual Valves
- YQNZ Compressed Gas Shut-Off Valves
- YRBX Flammable Liquid Shut-Off Valves
- YSDT LP Gas Shut-Off Valves
- CSA Certified
- ASME B16.33 (125 PSIG) (2")
- ASME B16.38 (125 PSIG) (3" - 8")
- CSA 3.16 (125 PSIG) (2" - 8")
- Conforms to ANSI B16.34
- Flange: ANSI B16.5
- Face-to-Face: ANSI B16.10
- API 607 Fire Safe
- Buy American Act Compliant
Technical Specifications
Item
Ball Valve
Size
1-1/2"
Port
Full Port
Design Type
2-Piece
End Connection
Flanged
Body Material
WCB Carbon Steel
Ball Material
CF8M Stainless Steel
Handle Type
Wrench Operator
Seat Material
RPTFE
Stem Material
304 Stainless Steel
Stem Design
Fire Safe Stem
Pressure Class
Class 150
Max Pressure
300 psi WOG, 150 psi steam
